Product Details:
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: CE
Model Number: WM-4045B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 5-10 work days
Payment Terms: L/C, T/T
Supply Ability: 1 set per two weeks

Automatic Rigid Box Machine / Full Automatic Rigid Box Machine / Rigid Box Machine

Description
Condition: New Warranty: One Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Type: Boxing Machine
Product Name: Automatic Rigid Box Making Machine Paper Box Forming Machine Driven Type: Electric&pneumatic
Tape Type: PET Tape Glue Type: Hot Glue
High Light:

fully automatic rigid box making machine

,

automatic rigid box machine

,

automatic gift box making machine

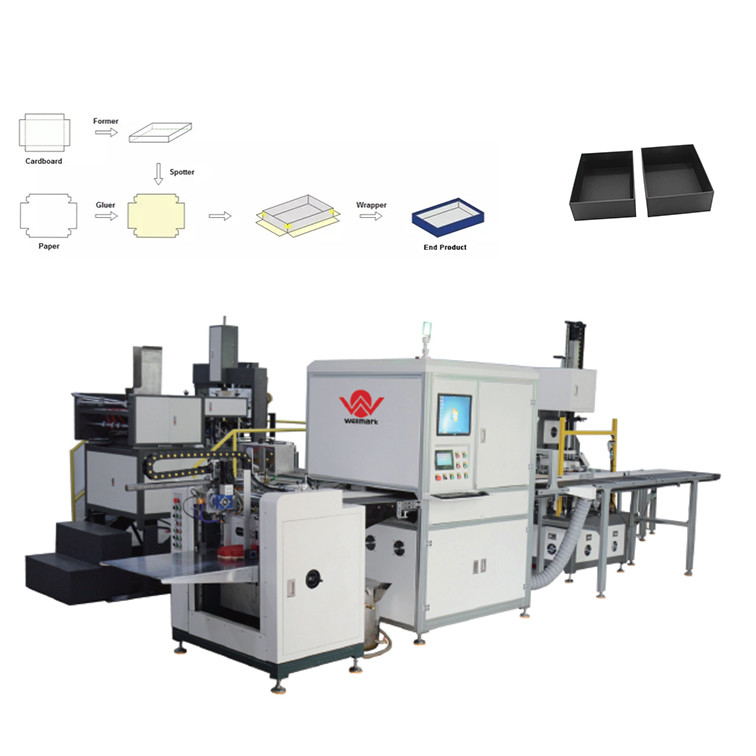

Full Automatic Rigid Box Making Machine





Features:



1, The machine automatic feeding paper and gluing, automatic feeding grey board , manipulator taking box positioning, mechanical arm holding box forming and pressing air bubbles an intelligent production line is completed.

2, 24-hours control for glue pre-heating function

3, Spotter by 2pcs of 5 megapixel HD Camera tracing system and YANAHA mechanical arm to positioning (spotting accuracy≤0.1mm)

4,The automatic corner pasting is controlled by heating alone

5,The forming part of boxes is accomplish intelligently with mechanical arm holding box, edge wrapping, ear folding, folding-in and air bubbles pressing.

6, The whole machine adopts PLC control, HD Camera positioning system , touch human-machine interface, the automatic production of rigid boxes forming process.

7, Computer control with error auto stop and display

8, Automatic Control System of Glue Viscosity (Selection)

9,The Forming unit can choose one or two (Selection)

10,Do not need to replace the shovel knife, pressing plate.



Technical Parameter



Model WM-4045B
Widest(W) 630mm
Narrowest(W) 95mm
Longest(L) 820mm
Shortest(L) 120mm
Longest(L) 450mm
Shortest(L) 100mm
Widest(W) 400mm
Narrowest(W) 80mm
Highest(H) 120mm
Shortest(H) 15mm
Thickness of Paperboard(T) 1.0mm-4.0mm
Thickness of Paper(g/㎡) 80g/㎡-300g/㎡
Speed ≤32pcs/min
Air pressure 0.6-0.8MPa
Voltage 380V/50Hz
Power 18Kw
Weight 5800Kgs
Machine Size L8800*W4300*H3100mm



Production Application

(The machine use for all kind of rigid boxes)

Automatic Rigid Box Machine / Full Automatic Rigid Box Machine / Rigid Box Machine 0  Automatic Rigid Box Machine / Full Automatic Rigid Box Machine / Rigid Box Machine 1



Rigid Box Product flew

Automatic Rigid Box Machine / Full Automatic Rigid Box Machine / Rigid Box Machine 2



Packing and Shipping

Packaging by wooden case and shipping by containers.

Automatic Rigid Box Machine / Full Automatic Rigid Box Machine / Rigid Box Machine 3
