Product Details:
|
| Name: | Book - Type Box Assembly Machine | Function: | Making Book - Type Box |
|---|---|---|---|
| Driven Type: | Electric&pneumatic | Production Capacity: | 18-30pcs/min |
| Dimension(l*w*h): | 4940*2000*2000mm | Warranty: | 1 Year |
| High Light: | fully automatic rigid box making machine,automatic rigid box machine,automatic gift box making machine |
||
Automatic Multifunctional Book - Type Box Assembly Machine
Product Introduce
Automatic Multifunctional Book - Type Box Assembly Machine is suitable for book shape boxes, box-in-box, and frame in box. This machine adopts the latest technology such as servo drive, photoelectric detection, PLC control, etc., to complete the processes of automatic feeding, painting, positioning, folding and forming.
Main Technical Parameter
| Model | WM-9045B |
| Dimension(L*W*H) | 4940*2000*2000mm |
| Machine weight | 800KG |
| Speed | 18-30PCS/min |
| Max case size | 900*450mm |
| Min case size | 90*45mm |
| Max box height size | 120mm |
| Frame Length Size(L*W*H) | 420*420*115mm |
| Frame Width Size(L*W*H) | 85*85*35mm |
| Bottom box height size | 15-80mm |
| Total height Size | ≦150mm |
| Precision positioning | ±0.1mm |
| Power supply | AC220V |
| Power | 8KW |
| Air pressure | 0.6Mpa |
Other Product Recommend
Hot Melt Adhesive EVA Glue For Book-type Assembly Machine
Process Flow
1. Adopting a downward suction structure to solve the problem of double or multiple case feeding and ensures that the case does not scratch.
2. Gluing is controlled by Japanese Panasonic servo motor, which makes the glue more precise.
The flexible line of gluing can be set freely on the screen according to product needs.
Optional hot and cold double glue system to make the product more viscous and anti-opening.
3. Adopting a four-station lifting table top feeding structure, one person can complete the feeding of the
skins and side wings, and the non-stop operation saves labor and improves efficiency. The book box can be assembled by replacing the feeding module with an assembly line, and the main machine structure is universal.
4. Positioning is controlled by Japanese Panasonic servo motor, which makes the positioning more
precise.

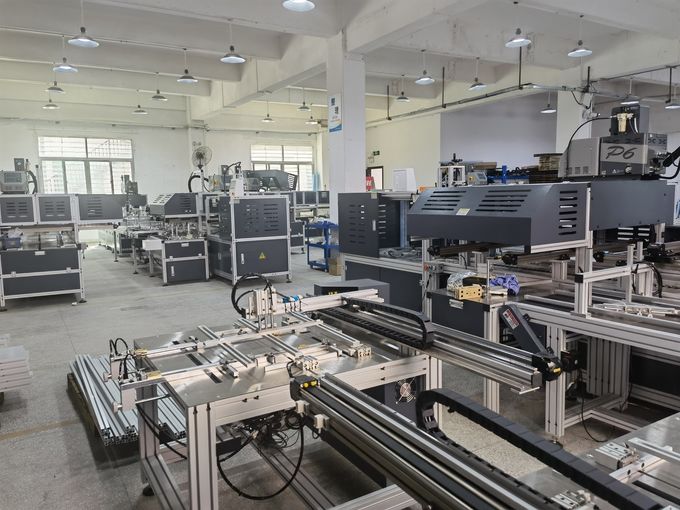

Work Shop Image
