Product Details:
|
| Name: | Semi Automatic Rigid Box Making Machine | Product Type: | Paper Box Making Machine |
|---|---|---|---|
| Usage: | Making Rigid Boxes | Automatic Grade: | Semi-Automatic |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support |
| High Light: | wrapping machine for boxes,perfume box wrapping machine,rigid box forming machine |
||
Rigid Box Wrapping Machine / Rigid Box Forming Machine
Automatic Rigid Box Forming Machine catalog.pdf
Product Description
This machine is our company's latest research and development of full automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.
Advantages
1. Very simple to operate, quickly change model and set machine
2. PLC touch screen, very simple to use, can set the quantity and record quantity which be made.
3. Double servo motors to make accurate forming.
4. Forming and pressure bubble together, do not need to pressure bubble again after forming.

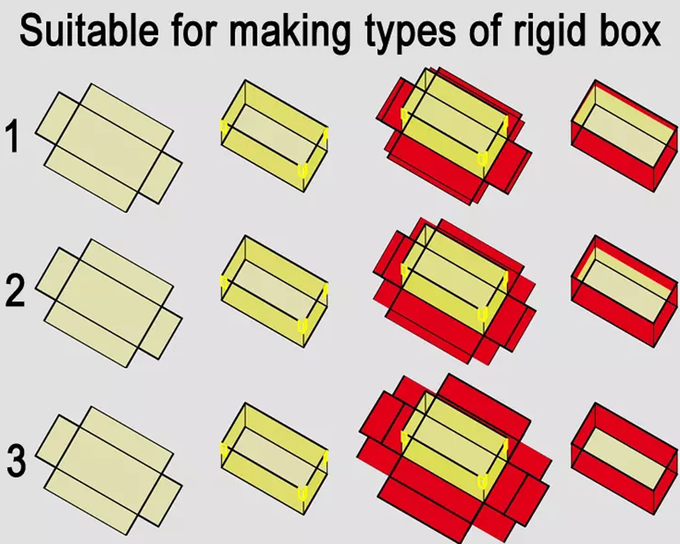

5. Has four forming types can choose, suitable for making special box.
6. Use imported bearings and electronic components, making stable and longer uselife.
7. Add a air container to make the air pressure in one level all the time, This will help to avoid damge machine because the unstable air pressure.
Technical Parameters
| Model | WM-500A | |
| Box Size | Longest | 500mm |
| Shortest | 80mm | |
| Widest | 400mm | |
| Narrowest | 60mm | |
| Highest | 120mm | |
| Lowest | 12mm | |
| Thickness of paperboard | Range | 1-3mm |
| Thickness of paper | Range | 80g-300g |
| Folding Edge Inside size | Range | 10-70mm |
| Folding Ears size | Range | 10-100mm |
| Speed | ≦20pcs/min | |
| Air Pressure | 0.6-0.8MPa | |
| Voltage | 220V/50HZ | |
| Moter Power | 1.5KW | |
| Net Weight | 1080kgs | |
| Machine Overall Dimension | L120*W150*H220cm | |
Product Application
