Semi Automatic Die-Cutting and Creasing Machine for Gift Boxes
Product Description
WM-1300PS Semi Automatic Die-cutting and Creasing Machine is the special equipment designed and developed applicable to the die cutting and creasing of advanced colorful boxes and cartons.
Its main body is made of advanced ductile cast iron being casted in resin sand and durable,never being deformation.the series machine have the advantages of large die cutting sheet thickness,high decision and efficiency by which the special shaped and bended corrugated paper can also be die cut in high speed paper feeding.
Technical Prameters
| Model |
WM-1300PS |
| Max. Die-cutting Speed |
5000 sheets/h |
| Die-cutting Precision |
±0.25mm |
| Max. Die-cutting Pressure |
250T |
| Max. Paper Size |
1320×950mm |
| Min. Paper Size |
550×450mm |
| Max. Die-cutting Size |
1310×940mm |
| Paper Processed |
|
| Cardboard |
200-2000g/㎡ |
| Corrugated paper |
≤8mm |
| Total Power |
13.5KW |
| Weight |
14T |
| Dimensions |
4000×2300×2300mm
|
Machine Features
1. Complete design, accurate installation, high stability, high security, low noise.
2. Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
3. High precision intermittent mechanism, high cutting precision, running steadily.
3. Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
4. Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
5. Automatic pressure adjust system, pressure digital display.
6. Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
7. Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
8. Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
9. Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
10. Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
11.Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
12. Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
13. Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.
Machine Sections Introduce
Feeding Section:
Apply to various size and thickness.
Apply to corrugated board less than 9mm.
Provide gripper feeding way.
Die-cutting Section:
Use imported components with high quality; Ensure more accurate control.
Have high standardization and generalization; Apply to mass production.
Cut down the cost.

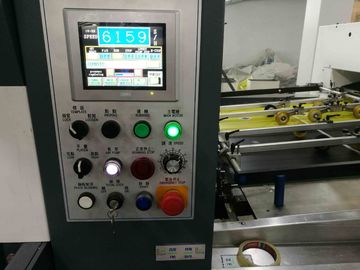

Main -machine Interface:
special equipment designed and developed applicable to the die-cutting and creasing of advanced colorful boxes and cartons with
high production efficiency, multi-function
high safety and easy operation to be combined.
Die-cutting Section:
Use imported components with high quality. Ensure more accurate control. Have high standardization and generalization. Apply to mass production. Cut down the cost.
Delivery Section:
Adopt non-stop automatic delivery system.
Increase the work efficiency. Adopt safe photoelectric detection device. Ensure smooth and steady delivery.
Main Chain Drive:
Adopt high accuracy over loading chain. Have high tensile strength and abrasion-resistance
Electrical control Part:
Adopt PLC control system; Equipped with safety protection device;
Have sound & light alarm and automatic shutdown; when accident occurs.
Ensure the safety of man and machine.
Main Driving System:
Adopt warm wheel and worm gear; Adopt shell bearing connection.
Ensure smooth and steady operation; Ensure high pressure of die-cutting.
Die-cutting & Creasing Part:
Adopt overload protection mechanism. Separate the driving and driven parts automatically when overload accident happens. The unique die-cutting frame can prevent the die-cutting board from dropping and separating
Finished Product Display
Packaging & Shipping
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.
2. In order to be waterproof, we usually use film to wrap machine.
3. We can handle shipping for customers too.
