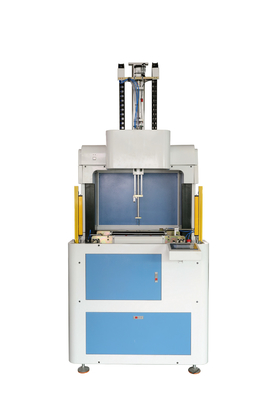

15 - 25pcs/Min Rigid Box Wrapping Machine Automatic

15 - 25pcs/Min Rigid Box Wrapping Machine Automatic
15 - 25pcs/Min Rigid Box Wrapping Machine Automatic
15 - 25pcs/Min Rigid Box Wrapping Machine Automatic 15 - 25pcs/Min Rigid Box Wrapping Machine Automatic 15 - 25pcs/Min Rigid Box Wrapping Machine Automatic 15 - 25pcs/Min Rigid Box Wrapping Machine Automatic 15 - 25pcs/Min Rigid Box Wrapping Machine Automatic

Large Image :  15 - 25pcs/Min Rigid Box Wrapping Machine Automatic

Product Details:
Place of Origin: China
Brand Name: wellmark
Model Number: XY-500A
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plywood case
Delivery Time: one week
Payment Terms: L/C, T/T
Supply Ability: 1 set per 15 working days

15 - 25pcs/Min Rigid Box Wrapping Machine Automatic

Description
Type: Wrapping Machine Product Name: Paper Box Forming Machine
Usage: Box Forming Function: Box Making
Automatic Grade: Automatic Speed: 15-25pcs/min
Warranty: 1 Year After-sales Service Provided: Video Technical Support
High Light:

15pcs/min Rigid Box Forming Machine

,

Rigid Box Wrapping Machine Automatic

,

25pcs/min Rigid Box Wrapping Machine



Rigid Box Forming Machine / Wrapping Machine

Automatic Rigid Box Forming Machine catalog.pdf



Product Application



This machine is our company's latest research and development of full automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.



15 - 25pcs/Min Rigid Box Wrapping Machine Automatic 0





Technical Parameters



Model WM-500A
Box Size Longest 500mm
Shortest 80mm
Widest 400mm
Narrowest 60mm
Highest 120mm
Lowest 12mm
Thickness of paperboard Range 1-3mm
Thickness of paper Range 80g-300g
Folding Edge Inside size Range 10-70mm
Folding Ears size Range 10-100mm
Speed ≦20pcs/min
Air Pressure 0.6-0.8MPa
Voltage 220V/50HZ
Moter Power 1.5KW
Net Weight 1080kgs
Machine Overall Dimension L120*W150*H220cm



Our Exhibitions



We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.

15 - 25pcs/Min Rigid Box Wrapping Machine Automatic 1
