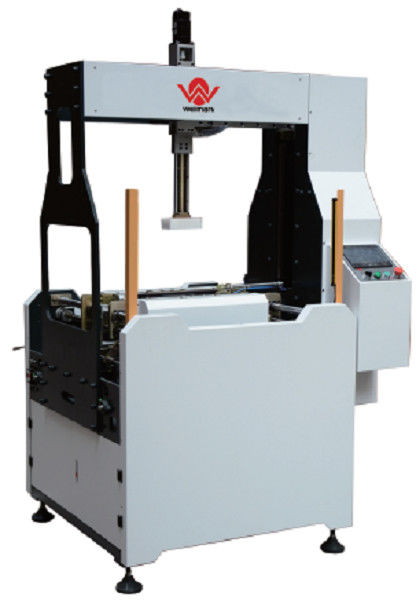

Automatic Rigid Box Forming Machine For Making Gift Box

Automatic Rigid Box Forming Machine For Making Gift Box
Automatic Rigid Box Forming Machine For Making Gift Box
Automatic Rigid Box Forming Machine For Making Gift Box Automatic Rigid Box Forming Machine For Making Gift Box Automatic Rigid Box Forming Machine For Making Gift Box Automatic Rigid Box Forming Machine For Making Gift Box Automatic Rigid Box Forming Machine For Making Gift Box

Large Image :  Automatic Rigid Box Forming Machine For Making Gift Box

Product Details:
Place of Origin: China
Brand Name: WELLMARK
Certification: CE
Model Number: WM-500A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: two weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 5-8 work days

Automatic Rigid Box Forming Machine For Making Gift Box

Description
Automatic Grade: Automatic Driven Type: Electric & Pneumatic
Packaging Type: Wooden Case Warranty: One Year
Condition: New Max Size Of Box(l*w*h): (L)500x(W)400x(H)120mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Model: WM-500A
High Light:

carton box stretch wrapping machine

,

box shrink wrap machine

Automatic Rigid Box Forming Machine For Making Gift Box

Automatic Rigid Box Corner Pasting Machine Catalog...





Product Description



Intelligent automatic forming machine is the best equipment to produce many high-grade gift boxes of different size. Reasonable design, stable performance, equivalent to the world’s leading technology level. PLC programmable controller is used to touch the man-machine interface. Maximum 239 different size memory storage, the fastest 5-10 minutes to replace different size of molds. The efficiency of changing different size of the machine is several times higher than that of the traditional forming machine. It also has the functions of automatic fault diagnosis, display and alarm, and ensures the safety of operation. Suitable for making high-end electronic product boxes, jewelry boxes and other high-end packaging cover type gift boxes.



Features:



Machine with servo pneumatic, PLC control.

Machine is debugged by man-machine interface is simple and easy to adjust the selection.

Machine all control parts adopt international high-end brands, low failure, high precision.

Machine with touch the emergency stop switch, such as an emergency press automatic stop.



Finished Picture



Automatic Rigid Box Forming Machine For Making Gift Box 0 Automatic Rigid Box Forming Machine For Making Gift Box 1

Technical Parameter



Model WM-500A
Longest(L) 500mm
Shortest(L) 80mm
Widest(W) 400mm
Narrowest(W) 60mm
Highest(H) 120mm
Shortest(H) 12mm
Folding Edges Inside Length 10-80mm
Folding Ear Length 10-100mm
Thickness of Paperboard(T) 1.0mm-4.0mm
Thickness of Paper(g/㎡) 80g/㎡-300g/㎡
Speed ≤20/pcs/min
Air pressure 0.6-0.8MPa
Voltage 220V/50Hz
Power 1.5kw
Weight 1100kgs
Machine Size L1200*W1500*H2200mm



Work shop Image



Fast Change Mould  Rigid Box Wrapping Machine,for Gift Box ,Shose Box,Greyboard Box



Our Services



1. Pre-Sales Service:

Inquiry and consulting support.
Sample testing support.
View our Factory.



2. After-Sales Service

Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.



3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and after sales service for all of our customers.
