Multi - Function Positioning Automatic Gluing Machine

Basic Information
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: CE
Model Number: WM-SD630B/C
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: 1 set per 20 working days
Detail Information
After-sales Service Provided: Video Technical Support Application: Machinery & Hardware
Voltage: 380V Automatic Grade: Automatic
Condition: New Driven Type: Electric,Mechanical
Warranty: 12 Months Color: Client's Request
High Light:

automatic carton folding gluing machine


auto gluing machine

Product Description

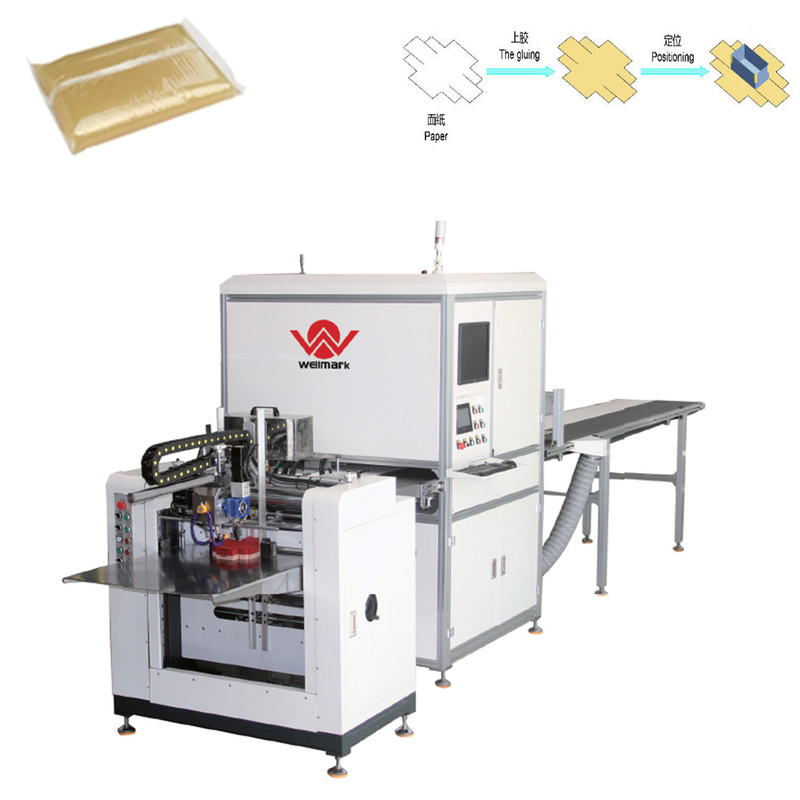

Full Automatic Multi - Function Gluing Positioning Machine



Product Introduction


Full Automatic multi-functional gluing positioning machine is the best equipment to produce high-end world cover boxes, book boxes, hard book shell and other new products. Reasonable design, stable performance, equivalent to the international leading technology level. Adopt PLC programmable controller, HD Camera positioning system, Yamaha mechanical arm to positioning , touch human-machine interface. Realize the automatic paper, automatic gluing, automatic positioning box or grey board are completed at one-time finish. The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class electronic hard cover, jewelry box, and other high-grade packing gift box.


Note: the maximum size of the box and minimal size depends on the paper at the same time the maximum and minimum size and surface quality of the paper. Speed will depending on the different boxes size with different paper materials.


Technical Parameter


Model WM-SD630B WM-SD630C
Widest(W) 630mm 630mm
Narrowest(W) 95mm 95mm
Longest(L) 820mm 820mm
Shortest(L) 120mm 120mm
Longest(L) 450mm 450mm
Shortest(L) 100mm 100mm
Widest(W) 400mm 400mm
Narrowest(W) 80mm 80mm
Highest(H) 120mm 120mm
Shortest(H) 15mm 15mm
Thickness of Paperboard(T) 1.0mm-3.0mm 1.0mm-3.0mm
Thickness of Paper(g/㎡) 80g/㎡-300g/㎡ 80g/㎡-300g/㎡
Speed ≤32pcs/min ≤32pcs/min
Manipulator 400 600
Conveying Box Boxes and Grey Board
Air pressure 0.6-0.8MPa 0.6-0.8MPa
Voltage 380V/50Hz 380V/50Hz
Power 10Kw 10Kw
Weight 2200Kg 2200Kg
Machine Size L6500*W4300*H2100mm L7800*W4300*H2100mm




1, This machine adopts an intelligent production line with automatic flying paper feeding, glue feeding, automatic carton or gray board feeding and manipulator grasping and positioning.

2, The glue in the rubber box of this machine can control the 24-hour preheating function.

3, The machine uses two 5-megapixel high-definition cameras image system and Yamaha manipulator to locate the box (accuracy <0.1mm

4, The whole machine adopts PLC control, high-definition camera positioning system, touch human-machine interface, and manipulator grasp positioning.

5, Computer Control, Automatic Stop and Fault Display

6, Automatic Control System of Glue Viscosity(Selection)

7, You can choose one or two cartons to connect the part of the forming machine to produce cartons.(Selection)

8, It is optional to connect a four side folding machine to form an automatic case maker machine behind the conveyor belt.(Selection)

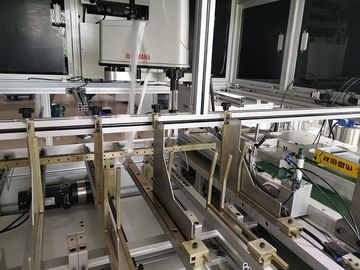

Work Shop Image
