Product Details:
|
| Product Type: | Box Ribbon Inserting Machine | Application: | Gift Box ,Shose Box,Greyboard Box |
|---|---|---|---|
| Voltage: | 220V/50Hz | After-sales Service Provided: | Video Technical Support |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| High Light: | Drawer Box Ribbon Inserting Machine,Rigid Box Ribbon Inserting Machine,Automatic Ribbon Inserting Machine For Jewelry Boxes |
||
Automatic Ribbon Inserting Machine For Jewelry Boxes
Automatic Ribbon Inserting Machine.pdf
Product Description

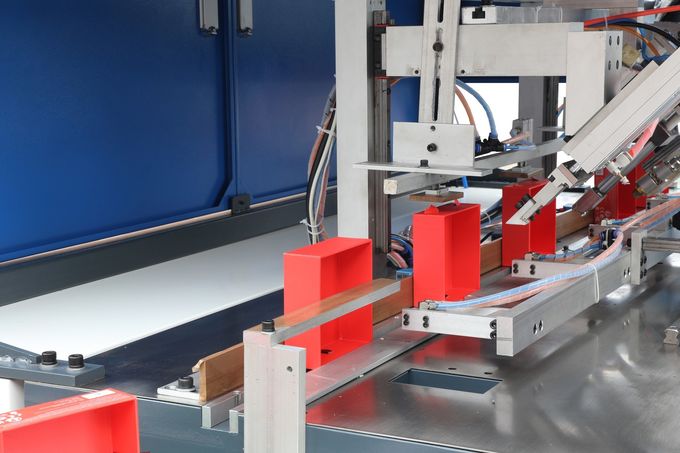

This machine adopts PLC, servo control system, man-machine interface. Photoelectric positioning system, automatic feeding, automatic punching, automatic dispensing, automatic flattening ribbon, automatic sending ribbon, ribbon cutting, ribbon rubbing automatic completion. This product is easy to adjust and save time. The error range is ±1-2mm, the whole machine only needs a human operator to complete the normal operation.
Product Application

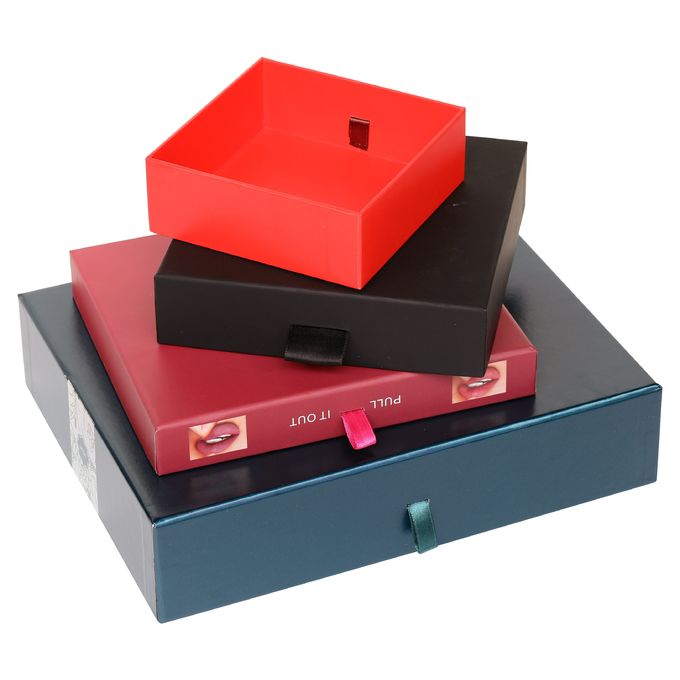

Automatic ribbon inserting machine is suitable for mass production of various types of heaven and earth cover box; Such as high-end jewelry box, mobile phone box, gift box, cosmetic box, watch box, bevel box, part of the special-shaped box and so on. Wipe ribbon range is wider, to meet the needs of the modern packaging market.
Technical Parameter
| Model | WM-RI200 | WM-RI400 |
| Max box wipe ribbon box size | 200*200*80mm | 400*400*120 |
| Min box wipe ribbon box size | 50*40*20mm | 150*150*20 |
| Ribbon Width | 8-28MM | 8-28MM |
| Production Speed | 15-20pcs/min | 15-20pcs/min |
| Power | 2.8Kw/220V | 2.8Kw/220V |
| Air Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Weight | 760KG | 880KG |
| Machine size | L2600*W1000*H2080mm | L2600*W1000*H2280mm |
| Glue Type | Hot EVA Glue | Hot EVA Glue |
Work Shop Image
