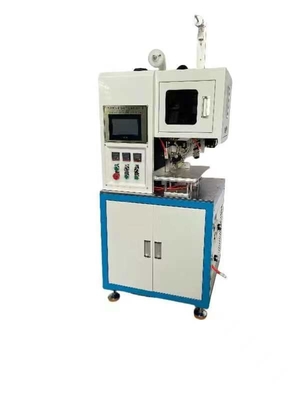

Hardcase Ribbon Semi Automatic Pasting Machine Electric Driven

Hardcase Ribbon Semi Automatic Pasting Machine Electric Driven
Hardcase Ribbon Semi Automatic Pasting Machine Electric Driven
Hardcase Ribbon Semi Automatic Pasting Machine Electric Driven Hardcase Ribbon Semi Automatic Pasting Machine Electric Driven Hardcase Ribbon Semi Automatic Pasting Machine Electric Driven Hardcase Ribbon Semi Automatic Pasting Machine Electric Driven

Large Image :  Hardcase Ribbon Semi Automatic Pasting Machine Electric Driven

Product Details:
Place of Origin: China
Brand Name: wellmark
Model Number: WM-S450
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plywood case
Delivery Time: one week
Payment Terms: L/C, T/T
Supply Ability: 1 set per 20 working days

Hardcase Ribbon Semi Automatic Pasting Machine Electric Driven

Description
Name: Semiautomatic Ribbin Pasting Machine Product Type: Ribbin Inserting Machine
Automatic Grade: Semi-Automatic After-sales Service Provided: Online Support
Driven Type: Electric Weight: 800kg
Warranty: 1 Year Voltage: 220V
High Light:

Drawer Box Ribbon Pasting Machine

,

Jewelry Box Ribbon Inserting Machine

,

flat ribbon pasting machine

Semiautomatic Hardcase Ribbon Pasting Machine



Product Description



Multi-purpose Semiautomatic Ribbon Pasting Machine adopts ball screw drive, the alignment accuracy error is ±0.05mm, and the jack action is interspersed by imitating manual action to ensure that the integrity of the ribbon is not deformed. The longest ribbon is folded in half and left on the gray plate (box) with a length of 60㎜ and a minimum of 10mm. Ribbon length adjustment using step digital adjustment, accurate control of ribbon length (increase optical fiber and vision) can accurately complete the ribbon trademark and LOGO product gluing. This machine can paste flat ribbon and insert ribbon in drawer boxes.



The whole machine adopts Xinjie plc control system, and the accessories adopt fine grinding processing technology. The hot glue spraying system is a 2-liter soluble glue spraying system independently developed by our company according to the small amount of glue used in the ribbon process and the especially large pressure. It can reduce a series of problems such as aging impurities of pressure sensitive adhesive, and the spray gun can complete 1200 spray speeds per minute with a high-speed gun. With high-frequency solenoid valve (200+ times per second injection) can accurately control the glue. After-sales service is guaranteed, and it is truly multi-functional for customers to buy it.



Technical Parameter



型号 Model WM-S450
最大盒子尺寸 Max box size 120*300*400mm
最小盒子尺寸 Min box size 10*50*50mm
最宽皮壳尺寸 Max width of Bookcase size 450mm
丝带宽 Ribbon Width 10-25MM
生产速度 Production Speed 20-23pcs/min
功率 Power 220V/2KW
重量 Weight 200KG
PLC PLC XINJE
整机尺寸 Machine size L700*W700*H1900



Packing and Shipping



Packaging by wooden case and shipping by containers.

Hardcase Ribbon Semi Automatic Pasting Machine Electric Driven 0
