Automatic Positioning Gluing Machine / Automatic Rigid Box Making Machine

Basic Information
Place of Origin: CHINA
Brand Name: WELLMARK
Model Number: WM-650AP
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Standard Seaworthy Packing
Delivery Time: 5-8 work day
Payment Terms: T/T, L/C at sight
Detail Information
Type: Boxing Machine Condition: New
Packaging Type: Wood Case Driven Type: Pneumatic
Voltage: 380V Power: 11.5KW
Place Of Origin: Dongguan China (Mainland) Brand Name: Wellmark
Dimension(L*W*H): L4500*W4000*H2100mm Model Number: WM-650AP
Weight: 2000KG After-sales Service Provided: Engineers Available To Service Machinery Overseas
Feeding Way: Automatically Continuously Feeding Working Speed: ≤32sheet/min
Paper Thickness: 80-200g/㎡ Max Box Size: L430*W350*H100mm
Min Box Size: L120*W45*H15mm Function: Positioning And Gluing
High Light:

fully automatic carton box making machine


food box making machine

Product Description

Automatic Positioning and Gluing Machine / Automatic Rigid Box Making Machine



Product Description

Accurate Positioning Gluing Machine is the best equipment to produce high-grade of rigid box and hardcase also,it have reasonable design, stable performance, equivalent to the international leading technology level. Adopt PLC programmable controller,HD Camera positioning system,Yamaha mechanical arm to positioning , touch human-machine interface. Realize the automatic paper, automatic gluing, automatic positioning one-time finish. The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class electronic hard cover, jewelry box, and other high-grade packing gift box.
Note: the maximum size of the box and minimal size depends on the paper at the same time the maximum and minimum size and surface quality of the paper. Speed will depending on the different boxes size with different paper materials.


Product Feature

1, Automatically feed paper and boxes or grey board.
2, Spotter by 2pcs of 5 megapixel HD Camera tracing system and Yamaha mechanical arm to positioning (spotting accuracy ≤0.1mm
3, The whole machine adopts PLC control, HD Camera positioning system, touch human-machine interface, positioning box with fast speed.
4, Computer control with error auto stop and display
5, this machine can choose to make the rigid boxes or hard cover,just ready the different feeder conveyor before order.



Techical Parameters



Paper Wrap Size


Widest(W) 600mm
Narrowest(W) 95mm
Longest(L) 820mm
Shortest(L) 120mm


Box Size

L=Length W=Width


Longest(L) 450mm
Shortest(L) 120mm
Widest(W) 400mm
Narrowest(W) 45mm
Highest(H) 120mm
Lowest(H) 15mm
Hard Case Size Widest(W) 500mm
Narrowest(W) 80mm
Longest(L) 800mm
Shortest(L) 60mm
Thickness of Paperboard(g/m2) Thinnest(T) 1.0mm - 4.0mm
Thickness of Paper(g/m2) Range 80g/m2-300g/m2
Speed ≤32pcs/min
Air pressure 0.6-0.8MPa
Voltage 380V/50HZ
Power 11.5kw
Net Weight 2000kgs
Machine Overall Dimension L4.5m×W4.0m×H2.1m



Product Advantage


1. High positioning accuracy with a positive and negative error of 0.05mm.
2. Visual deviation correction positioning auxiliary function, the manipulator can automatically adjust the positioning position.
3. Automatic feida paper feeding, simple, efficient and stable production.
4. Specially designed gluing roller can adjust thinner and more uniform gluing coating on paper surface.
5. Specially designed gluing backflow device can make gluing easy to backflow into gluing barrel and circulate.
6. Relatively closed circulation design can reduce the temperature loss of glue.
7. Special paper unloading blade is easy to glue at high speed.
8. The conveyor belt is equipped with strong suction air to make the coated surface paper more stable on the conveyor belt.
9. Can choose to increase the glue precision automatic detection control device.
10. Automatic delivery carton or cardboard can be selected for positioning.

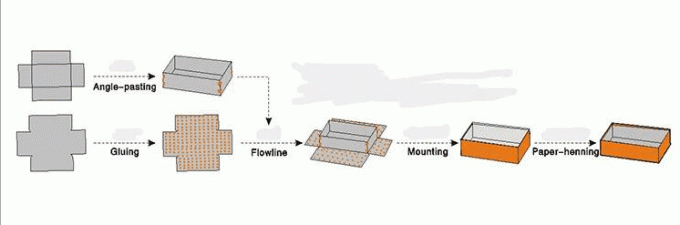

Rigid Box Product flew

Automatic Positioning Gluing Machine / Automatic Rigid Box Making Machine 0

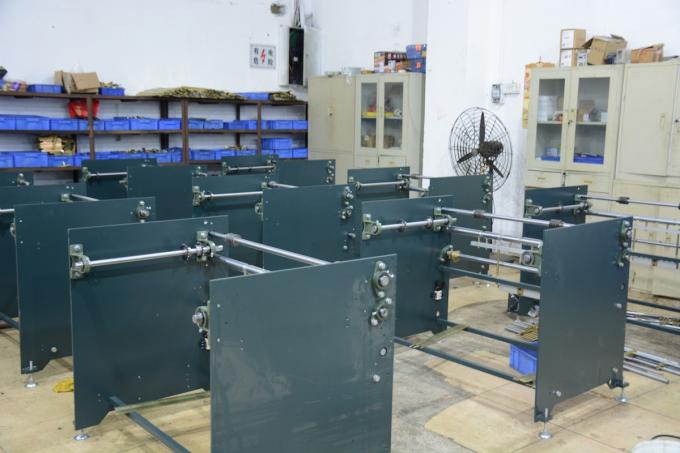

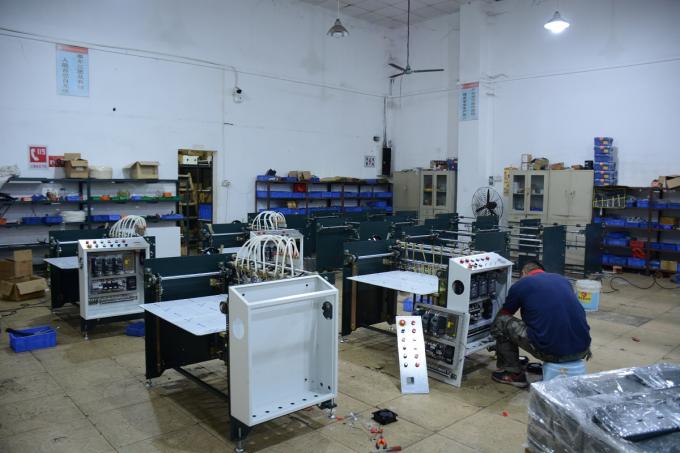

Workshop View

Automatic Positioning Gluing Machine / Automatic Rigid Box Making Machine 1

Automatic Positioning Gluing Machine / Automatic Rigid Box Making Machine 2



Packing and Shipping

Packaging by wooden case and shipping by containers.

Automatic Positioning Gluing Machine / Automatic Rigid Box Making Machine 3Automatic Positioning Gluing Machine / Automatic Rigid Box Making Machine 4
