Full Automatic Gluing Positioning Machine To Make Box And Grey Board

Basic Information
Place of Origin: China
Brand Name: wellmark
Model Number: WM-SD630C
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wooden case
Delivery Time: one week
Payment Terms: L/C, T/T
Supply Ability: 1 set per 20 working days
Detail Information
Type: Gluing Positioning Machine Function: Gluing/Coating
Application: Machinery & Hardware After-sales Service Provided: Video Technical Support
Dimension(l*w*h): L7800*W4300*H2100 Power: 10 KW
High Light:

Full Automatic Gluing Positioning Machine


Automatically Feed Paper Gluing Positioning Machine


HD Camera Positioning Automatic Gluing Machine

Product Description

Full Automatic Gluing Positioning Machine To Make Box And Grey Board





1, Automatically feed paper and boxes or grey board.
2, Spotter by 2pcs of 5 megapixel HD Camera tracing system and Yamaha mechanical arm to positioning (spotting accuracy ≤0.1mm

3, The whole machine adopts PLC control, HD Camera positioning system, touch human-machine interface, positioning box with fast speed.

4, Computer control with error auto stop and display

5, this machine can choose to make the rigid boxes or hard cover,just ready the different feeder conveyor before order.


Product Description


Full Automatic Multi Functional Gluing Positioning Machine is the best equipment to produce high-grade of rigid box and hardcase also,it have reasonable design, stable performance, equivalent to the international leading technology level. Adopt PLC programmable controller,HD Camera positioning system,Yamaha mechanical arm to positioning , touch human-machine interface. Realize the automatic paper, automatic gluing, automatic positioning one-time finish. The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class electronic hard cover, jewelry box, and other high-grade packing gift box.

Note: the maximum size of the box and minimal size depends on the paper at the same time the maximum and minimum size and surface quality of the paper. Speed will depending on the different boxes size with different paper materials.


Technical Parameter


Model WM-SD630C
Widest(W) 630mm
Narrowest(W) 95mm
Longest(L) 820mm
Shortest(L) 120mm
Longest(L) 450mm
Shortest(L) 100mm
Widest(W) 400mm
Narrowest(W) 80mm
Highest(H) 120mm
Shortest(H) 15mm
Thickness of Paperboard(T) 1.0mm-3.0mm
Thickness of Paper(g/㎡) 80g/㎡-300g/㎡
Speed ≤32pcs/min
Manipulator 600
Conveying Boxes and Grey Board
Air pressure 0.6-0.8MPa
Voltage 380V/50Hz
Power 10Kw
Weight 2200Kg
Machine Size L7800*W4300*H2100mm

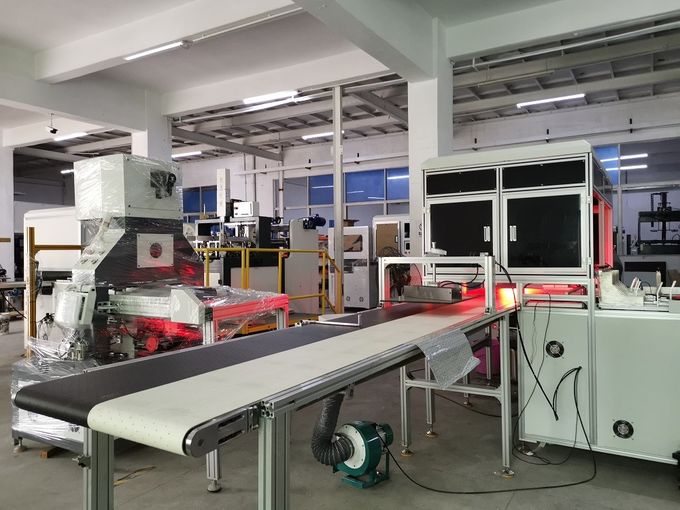

Work Shop lmage


Full Automatic Gluing Positioning Machine To Make Box And Grey Board 0



Production Application

Full Automatic Gluing Positioning Machine To Make Box And Grey Board 1
