Product Details:
|
| Brand Name: | Wellmark | Function: | Box Forming |
|---|---|---|---|
| Voltage: | 220V/50HZ | Power: | 1.5kw |
| Dimension: | L120*W150*H220cm | Weight: | 1080kgs |
| Mould Change Time: | 5-10min | Warranty: | 1 Year |
| Model: | WM-500A | ||
| Highlight: | wrapping machine for boxes,perfume box wrapping machine,rigid box forming machine |
||
Automatic Rigid Box Wrapping Machine
Automatic Rigid Box Forming Machine catalog.pdf
Product Description:
WM-500A Automatic Rigid Box Forming Machine is our company's latest research and development of full automatic intelligence box molding machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.
Techical Parameters
| Model | WM-500A | |
| Box Size | Longest | 500mm |
| Shortest | 80mm | |
| Widest | 400mm | |
| Narrowest | 60mm | |
| Highest | 120mm | |
| Lowest | 12mm | |
| Thickness of paperboard | Range | 1-3mm |
| Thickness of paper | Range | 80g-300g |
| Folding Edge Inside size | Range | 10-70mm |
| Folding Ears size | Range | 10-100mm |
| Speed | ≦20pcs/min | |
| Air Pressure | 0.6-0.8MPa | |
| Voltage | 220V/50HZ | |
| Moter Power | 1.5KW | |
| Net Weight | 1080kgs | |
| Machine Overall Dimension | L120*W150*H220cm | |
Product Features:
1. This machine adopts PLC and man-machine control, error auto stop and display;
2. It use air cylinder and double servo and stepper control;
3. All the parts adopt international high-end brands, low failure rate, high precision, fully automated process;
4. This machine no need change the pressure board,folding knife,just input the dimensions size of box;
5. The machine will adjust the size automatically,save the time of change the different size ,it automatically wrap box, fold corner edges and wrapping box;
6. It has small volume,easy to operate ,fast speed,change size more simple ect.
Suitable box types
This machine is automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes,finest jewelry boxes, ornaments boxes, and cosmetic boxes, etc.
Advantages
a, Very simple to operate, quickly change model and set machine
b, PLC touch screen, very simple to use, can set the quantity and record quantity which be made.
c, Double servo motors to make accurate forming.
d, Forming and pressure bubble together, do not need to pressure bubble again after forming.

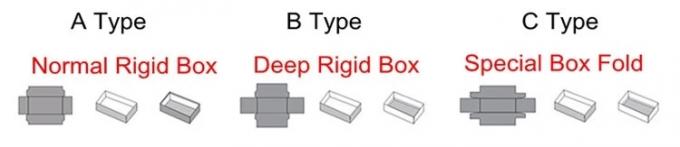

e, Has four forming types can choose, suitable for making special box.
f, Use imported bearings and electronic components, making stable and longer uselife.
g, Add a air container to make the air pressure in one level all the time, This will help to avoid damge machine because the unstable air pressure.
Our Exhibitions
We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
Packaging and Delivery
Packaging by wooden case, and delivery by containers.
