Product Details:
|
| Name: | Semi Automatic Rigid Box Making Machine | Product Type: | Paper Box Making Machine |
|---|---|---|---|
| Type: | Rigid Paper Box Machine | After-sales Service Provided: | Video Technical Support,Online Support |
| Voltage: | 220V/50HZ | Warranty: | 1 Year |
| High Light: | wrapping machine for boxes,perfume box wrapping machine,rigid box forming machine |
||
Gift Box / Cell Phone Box Forming Machine
Automatic Rigid Box Forming Machine catalog.pdf
Product Description
WM-500A/350A Automatic Fast Change Moulds Machine is our company's latest research and development of full automatic intelligence box molding machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.
This machine is our company's latest research and development of full automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.
Product Features:
1. This machine adopts PLC and man-machine control, error auto stop and display;
2. It use air cylinder and double servo and stepper control;
3. All the parts adopt international high-end brands, low failure rate, high precision, fully automated process;
4. This machine no need change the pressure board,folding knife,just input the dimensions size of box;
5. The machine will adjust the size automatically,save the time of change the different size ,it automatically wrap box, fold corner edges and wrapping box;
6. It has small volume,easy to operate ,fast speed,change size more simple ect.

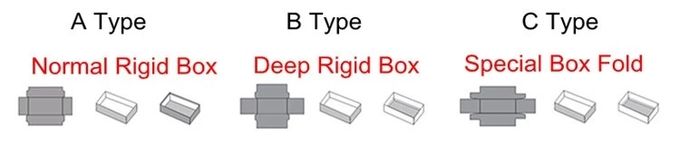

Suitable box types
This machine is automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes,finest jewelry boxes, ornaments boxes, and cosmetic boxes, etc.
Technical Parameter
| Model | WM-500A | WM-350A |
| Longest(L) | 500mm | 380mm |
| Shortest(L) | 80mm | 45mm |
| Widest(W) | 400mm | 350mm |
| Narrowest(W) | 60mm | 40mm |
| Highest(H) | 120mm | 90mm |
| Shortest(H) | 12mm | 12mm |
| Folding Edges Inside Length | 10-80mm | 10-70mm |
| Folding Ear Length | 10-100mm | 10-70mm |
| Thickness of Paperboard(T) | 1.0mm-4.0mm | 1.0mm-4.0mm |
| Thickness of Paper(g/㎡) | 80g/㎡-300g/㎡ | 80g/㎡-300g/㎡ |
| Speed | ≤20/pcs/min | ≤20pcs/min |
| Air pressure | 0.6-0.8MPa | 0.6-0.8MPa |
| Voltage | 220V/50Hz | 220V/50Hz |
| Power | 1.5kw | 1.5kw |
| Weight | 1100kgs | 950kgs |
| Machine Size | L1200*W1500*H2200mm | L1100*W1400*H2000mm |
Work Shop Image
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood box. Suitable for exporting.
Q2. What is your terms of payment?
A: T/T 100% before delivery. We'll show you the photos and video of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your down payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to my requests?
A: Yes, we can produce accordint to your requests. We can design and develop the machine.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
