Box Wrapping Machine / Automatic Rigid Box Forming Machine

Basic Information
Place of Origin: CHINA
Brand Name: WELLMARK
Model Number: WM-500A
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-8 work day
Payment Terms: T/T, L/C at sight
Detail Information
Function: Box Forming Voltage: 220V/50HZ
Power: 1.5kw Dimension: L120*W150*H220cm
Weight: 1080kgs Warranty: 12 Months
Character: High Efficiency, Stable Performance
High Light:

carton box stretch wrapping machine


parcel wrapping machine

Product Description

Box Wrapping Machine / Automatic Rigid Box Forming Machine




Product Description


The machine is processing Hardcover Gift boxes, boxes ideal world of automation equipment, the pipeline will be good through artificial boxes and tissue paper orientation, and then locate good Cassette into the machine mold, the machine automatically run, edging ,folding, pressing bubble once completed. Produce hardcover boxes per minute 15-20,greatly improving production efficiency, reduce production cost.

Rigid Box molding machine are developed by our company, production, stable performance, wide range of uses.It has four rocking handles, it can adjust the size more precisely, max size can be 500mm, min size can be 60mm, and the size can be customized.It has four hairbrushes, they can make the production more smoothly, make the surface flat, and make the box more adhesive with the glue.



Technical Parameters


Model WM-500A
Box Size Longest 500mm
Shortest 80mm
Widest 400mm
Narrowest 60mm
Highest 120mm
Lowest 12mm
Thickness of paperboard Range 1-3mm
Thickness of paper Range 80g-300g
Folding Edge Inside size Range 10-70mm
Folding Ears size Range 10-100mm
Speed ≦20pcs/min
Air Pressure 0.6-0.8MPa
Voltage 220V/50HZ
Moter Power 1.5KW
Net Weight 1080kgs
Machine Overall Dimension L120*W150*H220cm



Product Features


This machine adopts PLC and man-machine control, error auto stop and display,it use double servo and air cylinder stepper control  ,all the parts adopt international high-end brands,high precision,low failure rate,fully automated process,this machine no need change the folding knife,pressure board,just input the dimensions size of box,the machine will adjust the size automatically,save the time of change the different size boxes,it automatically wrapping box, fold corner edges and wrapping box, it has small volume,easy to operate ,fast speed,change size more simple ect.



Product Characters


1. The machine is completed by a servo motor, PLC programmable control.

2. The machine commissioning completed by the HMI selective, simple and easy to adjust.

3. The machine control accessories for all full use of international high-end brands, the failure of low and high accuracy.

4. The machine with a fault alarm functions, such as and part of the failure, the alarm will whistle, fault will be displayed on the screen.

5. The machine can touch with emergency stop switch, if an emergency press stops automatically.



Product Application

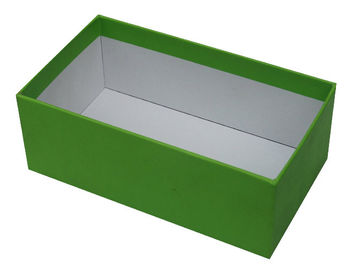

This machine is automatic intelligence box forming’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes,finest jewelry boxes, ornaments boxes,  and cosmetic boxes, etc.

Box Wrapping Machine / Automatic Rigid Box Forming Machine 0

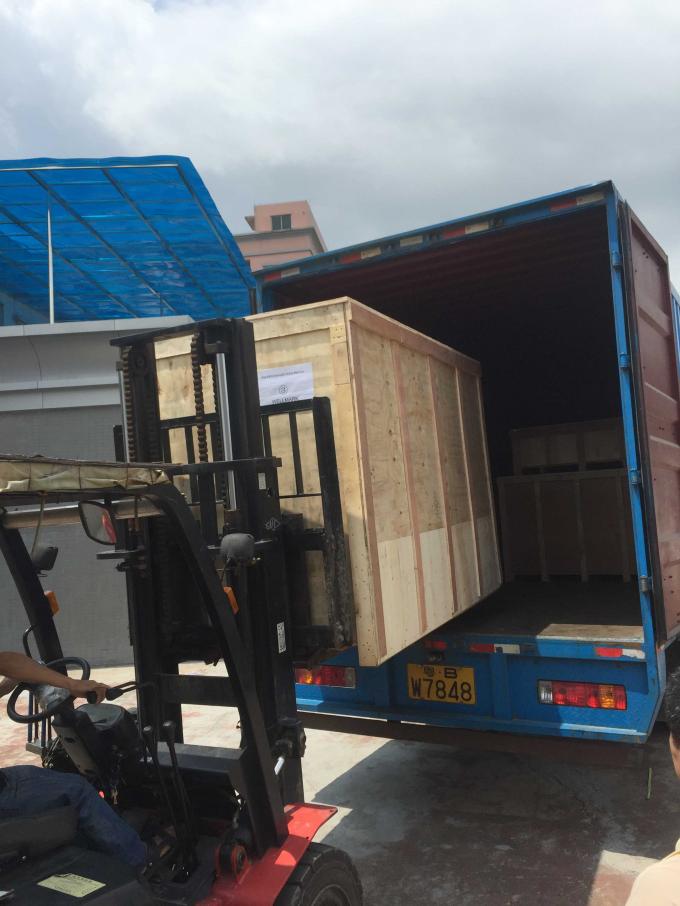

Packaging & Shipping

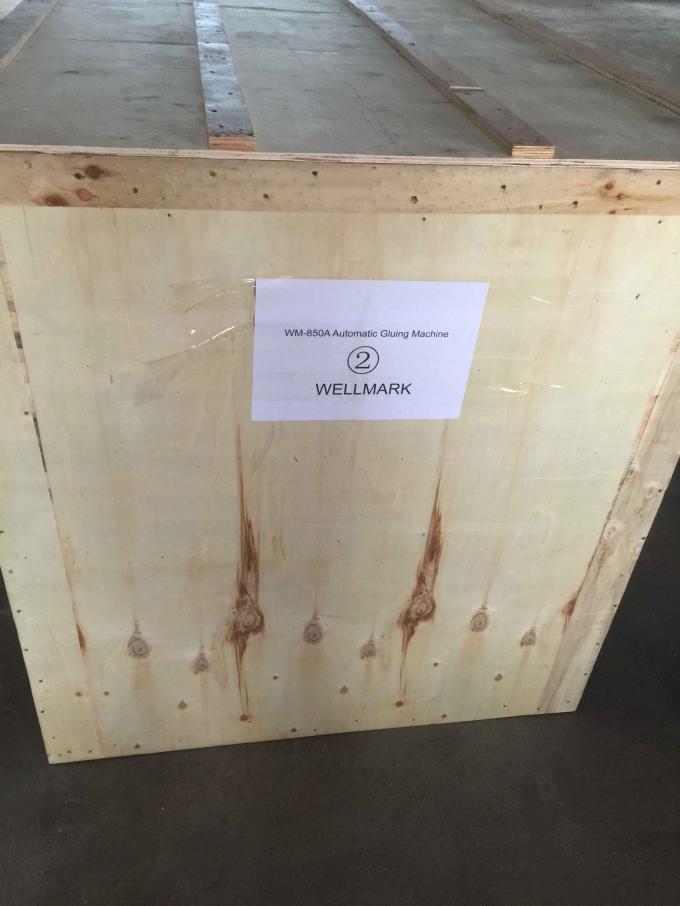

1. The packing is confirm to export wooden case standard, strong and durable. The                    wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.

Box Wrapping Machine / Automatic Rigid Box Forming Machine 1Box Wrapping Machine / Automatic Rigid Box Forming Machine 2




Our Services
1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
