Product Details:
|
| Brand Name: | Wellmark | Function: | Box Forming |
|---|---|---|---|
| Voltage: | 220V/50HZ | Power: | 1.5kw |
| Dimension: | L120*W150*H220cm | Weight: | 1080kgs |
| Change Size Time: | 5-10min | Warranty: | 1 Year |
| Application: | Gift Box ,Shose Box,Greyboard Box | ||
| Highlight: | wrapping machine for boxes,perfume box wrapping machine,rigid box forming machine |
||
Rigid Box Wrapping Machine For Gift Box ,Shose Box
Automatic Rigid Box Forming Machine catalog.pdf
Product Description:
This machine adopts PLC and man-machine control, error auto stop and display,it use air cylinder and double servo and stepper control ,all the parts adopt international high-end brands,low failure rate,high precision,fully automated process,this machine no need change the pressure board,folding knife,just input the dimensions size of box,the machine will adjust the size automatically,save the time of change the different size ,it automatically wrap box, fold corner edges and wrapping box, it has small volume,easy to operate ,fast speed,change size more simple ect.
Techical Parameters
| Model | WM-500A | WM-350A | |
| Box Size | Longest | 500mm | 380mm |
| Shortest | 80mm | 45mm | |
| Widest | 400mm | 350mm | |
| Narrowest | 60mm | 45mm | |
| Highest | 120mm | 90mm | |
| Lowest | 12mm | 12mm | |
| Thickness of paperboard | Range | 1-3mm | 1-3mm |
| Thickness of paper | Range | 80g-300g | 80g-300g |
| Folding Edge Inside size | Range | 10-70mm | 10-70mm |
| Folding Ears size | Range | 10-100mm | 10-80mm |
| Speed | ≦20pcs/min | ≦20pcs/min | |
| Air Pressure | 0.6-0.8MPa | 0.6-0.8MPa | |
| Voltage | 220V/50HZ | 220V/50HZ | |
| Moter Power | 1.5KW | 1.5KW | |
| Net Weight | 1080kgs | 980kgs | |
| Machine Overall Dimension | L120*W150*H220cm | L110*W130*H190cm | |
Features:
Machine with servo pneumatic, PLC control.
Machine is debugged by man-machine interface is simple and easy to adjust the selection.
Machine all control parts adopt international high-end brands, low failure, high precision.
Machine with touch the emergency stop switch, such as an emergency press automatic stop.
Advantages
a, Very simple to operate, quickly change model and set machine
b, PLC touch screen, very simple to use, can set the quantity and record quantity which be made.
c, Double servo motors to make accurate forming.
d, Forming and pressure bubble together, do not need to pressure bubble again after forming.
e, Has four forming types can choose, suitable for making special box.
f, Use imported bearings and electronic components, making stable and longer uselife.
g, Add a air container to make the air pressure in one level all the time, This will help to avoid damge machine because the unstable air pressure.

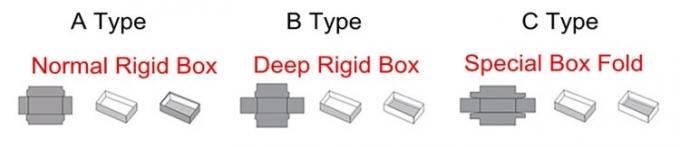

Suitable box types:
This machine is automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes,finest jewelry boxes, ornaments boxes, and cosmetic boxes, etc.

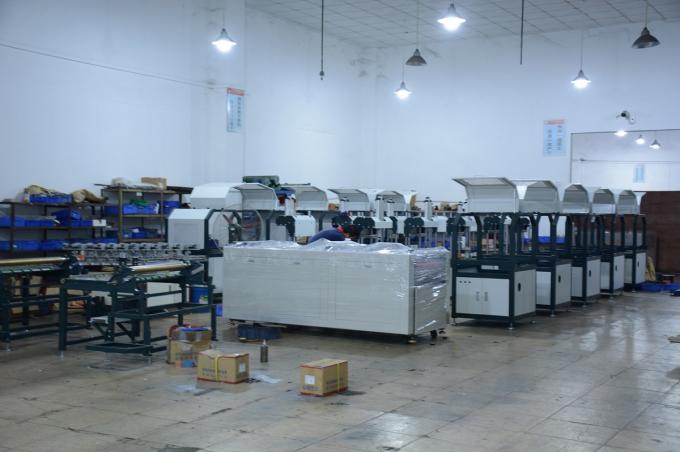

Work Shop Image:
Packaging and Delivery:
Packaging by wooden case.
