Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box

Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box
Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box
Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box

Large Image :  Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box

Product Details:
Place of Origin: CHINA
Brand Name: WELLMARK
Model Number: WM-350A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard Seaworthy Packing
Delivery Time: 7-14 work day
Payment Terms: T/T, L/C at sight

Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box

Description
Brand Name: Wellmark Function: Box Forming
Voltage: 220V/50HZ Power: 1.5kw
Dimension: L110*W130*H190cm Weight: 980kg
Mould Change Time: 5-10min Warranty: 1 Year
Charactor: Intellegence Application: Rigid Box
High Light:

wrapping machine for boxes

,

perfume box wrapping machine

,

rigid box forming machine

Intelligence box forming machines / Gift Box Forming Machine for Rigid Box

Automatic Rigid Box Forming Machine catalog.pdf



Product Features



This machine adopts PLC and man-machine control, error auto stop and display,it use air cylinder and double servo and stepper control ,all the parts adopt international high-end brands,low failure rate,high precision,fully automated process,this machine no need change the pressure board,folding knife,just input the dimensions size of box,the machine will adjust the size automatically,save the time of change the different size ,it automatically wrap box, fold corner edges and wrapping box, it has small volume,easy to operate ,fast speed,change size more simple ect.



Machine with servo pneumatic, PLC control.

Machine is debugged by man-machine interface is simple and easy to adjust the selection.

Machine all control parts adopt international high-end brands, low failure, high precision.

Machine with touch the emergency stop switch, such as an emergency press automatic stop.



Product Description



This machine is our company's latest research and development of full automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.



Techical Parameters



Model WM-350A
Box Size Longest 380mm
Shortest 45mm
Widest 350mm
Narrowest 45mm
Highest 90mm
Lowest 12mm
Thickness of paperboard Range 1-3mm
Thickness of paper Range 80g-300g
Folding Edge Inside size Range 10-70mm
Folding Ears size Range 10-80mm
Speed ≦20pcs/min
Air Pressure 0.6-0.8MPa
Voltage 220V/50HZ
Moter Power 1.5KW
Net Weight 980kgs
Machine Overall Dimension L110*W130*H190cm



Advantages



1. Very simple to operate, quickly change model and set machine

2. PLC touch screen, very simple to use, can set the quantity and record quantity which be made.

3. Double servo motors to make accurate forming.

4. Forming and pressure bubble together, do not need to pressure bubble again after forming.

5. Has four forming types can choose, suitable for making special box.

6. Use imported bearings and electronic components, making stable and longer uselife.

7. Add a air container to make the air pressure in one level all the time, This will help to avoid damge machine because the unstable air pressure.

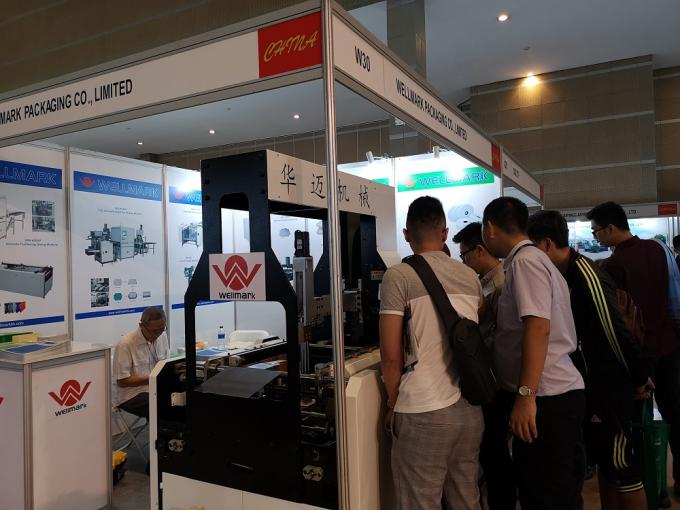

Our Exhibitions



We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.

Intelligence Box Forming Machines / Gift Box Forming Machine For Rigid Box 0
