|Application:||Rigid Box And Hard Cover||Automatic Grade:||Automatic|
|Place Of Origin:||Guangdong, China (Mainland)||Model Number:||WM-650AP|
|Dimension(L*W*H):||4.5 X 4.2x 2.1M||Weight:||2000kg|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Speed:||30pcs/min|
|Tape Type:||Paper Tape, PVC Tape||Glue Type:||Hot-melt Glue, Cold Glue, Animal Glue, Bone Glue,white Glue|
automatic paper box making machine,
fully automatic carton box making machine,
30pcs/min Rigid Box Positioning Machine

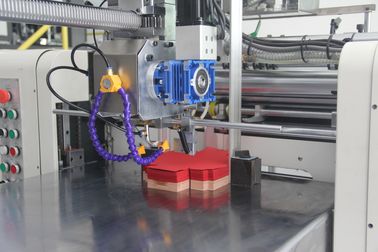

Automatic Rigid Box Positioning Machine for Grey Board Boxes
Automatic Rigid Box Positioning Machine is the best equipment to produce high-grade of rigid box and hardcase also,it have reasonable design, stable performance, equivalent to the international leading technology level. Adopt PLC programmable controller,HD Camera positioning system,Yamaha mechanical arm to positioning , touch human-machine interface. Realize the automatic paper, automatic gluing, automatic positioning one-time finish. The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class electronic hard cover, jewelry box, and other high-grade packing gift box.
Note: the maximum size of the box and minimal size depends on the paper at the same time the maximum and minimum size and surface quality of the paper. Speed will depending on the different boxes size with different paper materials.
Other Product Recommend
Hot Melt Animal Jelly Glue For Making Gift Box / Hardcover Book Case
1, Automatically feed paper and boxes or grey board.
2, Spotter by 2pcs of 5 megapixel HD Camera tracing system and Yamaha mechanical arm to positioning (spotting accuracy ≤0.1mm
3, The whole machine adopts PLC control, HD Camera positioning system, touch human-machine interface, positioning box with fast speed.
4, Computer control with error auto stop and display
5, this machine can choose to make the rigid boxes or hard cover,just ready the different feeder conveyor before order.
WM-SD630B/C Accurate Positioning Gluing Machine
Paper Wrap Size
|Hard Case Size||Widest(W)||500mm|
|Thickness of Paperboard(g/m2)||Thinnest(T)||1.0mm - 4.0mm|
|Thickness of Paper(g/m2)||Range||80g/m2-300g/m2|
|Machine Overall Dimension||L4.5m×W4.0m×H2.1m|
