Desktop Gluing Machine / Manual Gluing Machine Used for Gluing the Cover Papers

Basic Information
Place of Origin: CHINA
Brand Name: WELLMARK
Model Number: WM-1000
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wood Case
Delivery Time: 5-8 work day
Payment Terms: T/T, L/C at sight
Supply Ability: 30 set per month
Detail Information
Type: Gluing Machine Condition: New
Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles Packaging Type: Case
Packaging Material: Wood Automatic Grade: Semi-Automatic
Driven Typ: Electric Voltage: 220V
Power: 100w Place Of Origin: China (Mainland)
Brand Name: Wellmark Model Number: WM-1000
After-sales Service Provided: Engineers Available To Service Machinery Overseas Product Name: Manual Gluing Machine
Color: Grey Usage: Paper Gluing
Feeding Way: Manual Feeding Speed: 1-20pcs/min
Warranty: One Year
High Light:

paper box manufacturing machine

,

paper carton box making machine

,

Desktop Manual Gluing Machine


Product Description

Desktop Gluing Machine / Manual Gluing Machine Used for Gluing the Cover Papers







Product Description



Roller immersion in the glue plate, when roller rotation, paper (or other material with smooth surface)feeding and coating at the same time, the glue evenly over the surface.The feeding speed could adjustment.





Technical Parameters





Model Unit WM-500A WM-700A WM-1000A
Gluing side   Under Side Under Side Under Side
Max.gluing width mm 500 700 1000
Min.gluing thickness g/m 0-300 0-300 0-300
Paper thickness g 40-3000 40-3000 40-3000
Materials thickness mm 0.1-10 0.1-10 0.1-10
Speed m/min 28 28 28
Motor Power w/v/hz 120w 220v 60Hz 120w 220v 60Hz 370w 220v 60Hz
Dimension mm 800*450*400 1030*450*400 1350*450*400
Package Dimension mm 860*390*430 1060*390*430 1360*390*510
Net Weight kg 50 60 80
Gross Weight kg 55 65 85
Glue choice   White latex(Polyethylene glue)
Paper Feed   By hand
Cleaning way   By hand
Automatic degree   Semi-automatic



 Product Application

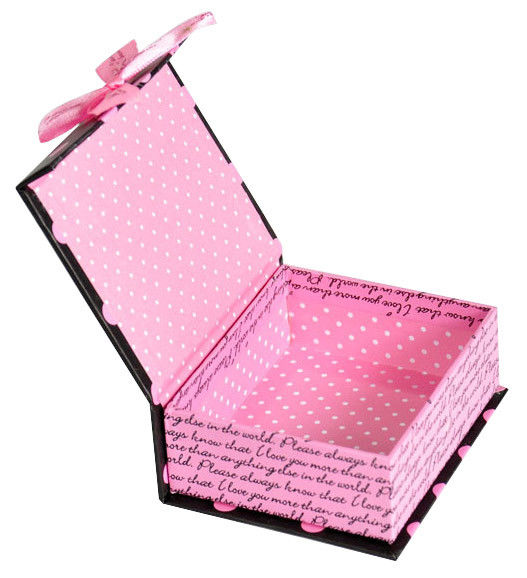

WM-700 is under side gluing machine, it is adopt stainless steel, effective anti - glue corrosion. It is mainly used for the gluing of different thickness of paper, paperboard, Special paper, leather, EVA, Nonwoven fabric, Oxford cloth,Etc. Paper box, carton box, Corrugated box, Leather case, note book making, EVA puzzle, Instead of manual gluing, improve
the efficiency of work.The gluing machine is the special equipment or paper products to do gluing, which is widely used in printing and packaging, paper box, carton, book cover making and Fabric sample volume producing industry.

Desktop Gluing Machine / Manual Gluing Machine Used for Gluing the Cover Papers 0





How to use


1.1 Installation:
      The machine must be placed on the level of the face, not a serious tilt phenomenon, otherwise, will make the glue to the end of the accumulation of glue out of the water tray
1.2 test machine:
      (200V / 50Hz) Turn on the power switch (the switch and the motor knob are in the same way) when the handle is turned manually (clockwise) A motor board, the motor speed control knob, the machine began to slow to fast rotation.

1.3 Adjustment:
    A. The thickness of the adhesive layer adjustment: at the same time rotating rubber layer thickness adjustment handle (the handle left and right each one), so that with a rubber roller before and after the move, and the gap between the roll changes,
Satisfied thickness of the adhesive layer. Then, tighten the screw on the screw can be. Adhesive thickness adjustment range of 0.03 ~ 0.10MM.
    B. Adjustment of the platen roller: Loosen the star handle on the handle (the left and right) of the platen roller to rotate the nut under it, and move the platen roller up and down. Which brought out the paper gap, pay attention: This gap should be at least greater than the above mentioned thickness of the adhesive layer. Otherwise it will make the paper roll with glue.
1.4. Disassembly of plastic disk:
     The plastic frame structure for the parallelogram mechanism, simply press the counterclockwise direction gently pull the tray handle to the next limit can be removed, remove the plastic plate, let go, the frame will automatically reset, heavy Repeat the above procedures, can be installed on the plastic.



Maintenance and repair



1. When using the motor speed control knob, only slowly rotate until you are satisfied with the speed.
2. When the tray tray is reset, it must hold the glue tray to handle the handle and let it slowly reset.
3. The relative movement point must always add lubricating oil.
4. After each class, you must clean the machine residual glue to prevent corrosion of parts
