Product Details:
|
| Automatic Grade: | Automatic | Driven Type: | Electric & Pneumatic |
|---|---|---|---|
| Packaging Type: | Wooden Case | Warranty: | One Year |
| Condition: | New | Max Size Of Box(l*w*h): | (L)500x(W)400x(H)120mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Model: | WM-500A |
| High Light: | paper box manufacturing machine,industrial box making machines,shoes box making machine |
||
Automatic Rigid Box Forming Machine For Making Gift Box
Automatic Rigid Box Corner Pasting Machine Catalog...
Product Description
Intelligent automatic forming machine is the best equipment to produce many high-grade gift boxes of different size. Reasonable design, stable performance, equivalent to the world’s leading technology level. PLC programmable controller is used to touch the man-machine interface. Maximum 239 different size memory storage, the fastest 5-10 minutes to replace different size of molds. The efficiency of changing different size of the machine is several times higher than that of the traditional forming machine. It also has the functions of automatic fault diagnosis, display and alarm, and ensures the safety of operation. Suitable for making high-end electronic product boxes, jewelry boxes and other high-end packaging cover type gift boxes.
Features:
Machine with servo pneumatic, PLC control.
Machine is debugged by man-machine interface is simple and easy to adjust the selection.
Machine all control parts adopt international high-end brands, low failure, high precision.
Machine with touch the emergency stop switch, such as an emergency press automatic stop.

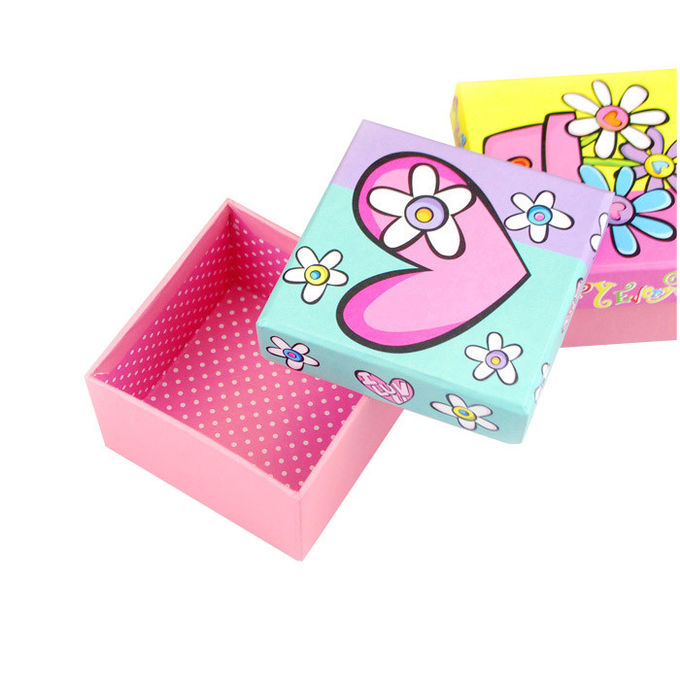

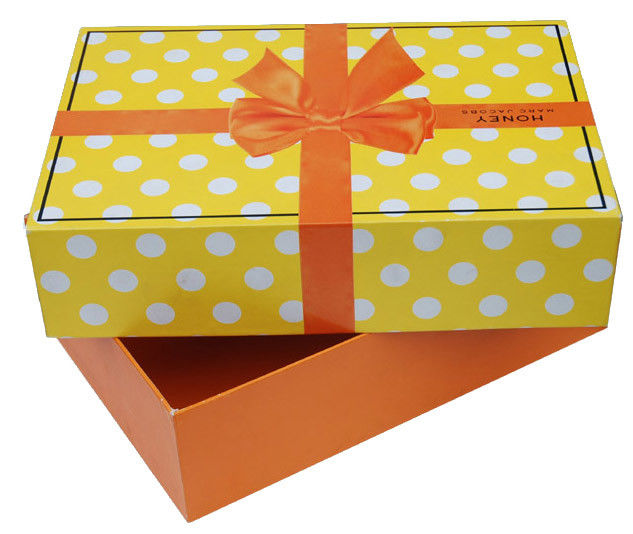

Finished Picture
Technical Parameter
| Model | WM-500A |
| Longest(L) | 500mm |
| Shortest(L) | 80mm |
| Widest(W) | 400mm |
| Narrowest(W) | 60mm |
| Highest(H) | 120mm |
| Shortest(H) | 12mm |
| Folding Edges Inside Length | 10-80mm |
| Folding Ear Length | 10-100mm |
| Thickness of Paperboard(T) | 1.0mm-4.0mm |
| Thickness of Paper(g/㎡) | 80g/㎡-300g/㎡ |
| Speed | ≤20/pcs/min |
| Air pressure | 0.6-0.8MPa |
| Voltage | 220V/50Hz |
| Power | 1.5kw |
| Weight | 1100kgs |
| Machine Size | L1200*W1500*H2200mm |

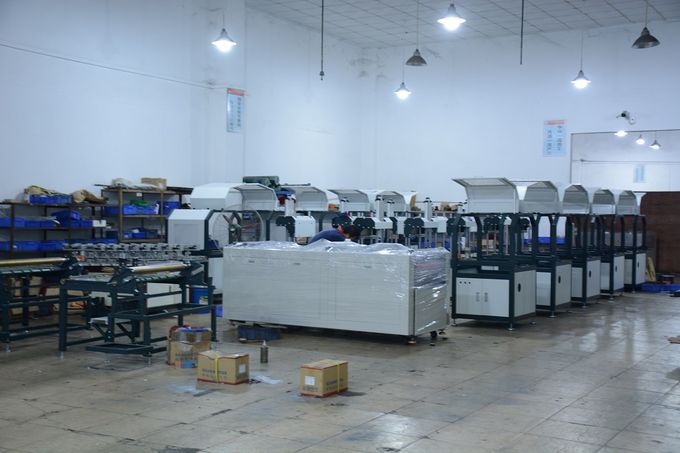

Work shop Image
Our Services
1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
3. Warranty
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.
Look forward to long term cooperation with customers, we will make best service and after sales service for all of our customers.
