Corner Pasting Tape / Hot Melt Tape

Corner Pasting Tape / Hot Melt Tape
Corner Pasting Tape / Hot Melt Tape
Corner Pasting Tape / Hot Melt Tape Corner Pasting Tape / Hot Melt Tape Corner Pasting Tape / Hot Melt Tape Corner Pasting Tape / Hot Melt Tape Corner Pasting Tape / Hot Melt Tape

Large Image :  Corner Pasting Tape / Hot Melt Tape

Product Details:
Place of Origin: Dongguan China (Mainland)
Brand Name: Wellmark
Certification: SGS
Model Number: TS19
Payment & Shipping Terms:
Minimum Order Quantity: 240rolls
Price: Negotiable
Packaging Details: Carton Packing
Delivery Time: 1-3 day
Payment Terms: T/T
Supply Ability: 3000 pcs / Day

Corner Pasting Tape / Hot Melt Tape

Adhesive Type: Hot Melt Color: Transparent
Application: For Boxes Corner Pasting Dimensions: 19/22/29Dimensions(Width)*300meter(Length)
Usages: Stick Cardboards To Boxes HS Code: 3919109900
Brand Name: Wellmark Place Of Origin: Dongguan China (Mainland)
Model: TS1-19
High Light:

hot melt adhesive tape


Hot corner pasting tape


Hot PVC Tape for pasting box corner

Corner Pasting Tape / Hot Melt Tape​

PET Tape catalog.pdf


Product Description


Box Corner Pasting Tape is made of imported kraft paper, PET (polyester) and other substrates coated with polyolefin hot melt adhesive. It is mainly suitable for single angle and full automatic high-speed four-angle sticking equipment to make carton four-corner sticking and shaping. It has the characteristics of strong stickiness, easy cutting, simple operation, beautiful appearance, regular, not easy to be shelled or deformed due to dampness and heat.


This PET Tape OPP Tape PVC Tape Plastic Tape TS1-19 Box Corner Pasting Tape is uniformly sprayed on the PET substrate in a dustless environment with high temperature hot melt adhesive. The thickness of the PET substrate is 50um and the thickness of the hot melt adhesive is 20um. The total thickness of the tape is 70um. The width of the tape is usually 19MM, but it can also cut other width tapes according to customer's requirements. The total length is about 300m. Mainly used in all kinds of carton filler machine or automatic four-corner filler machine to stick the four corners of the box. After filler filler, the carton is stable, reliable and safe. Mainly used for high quality gift boxes

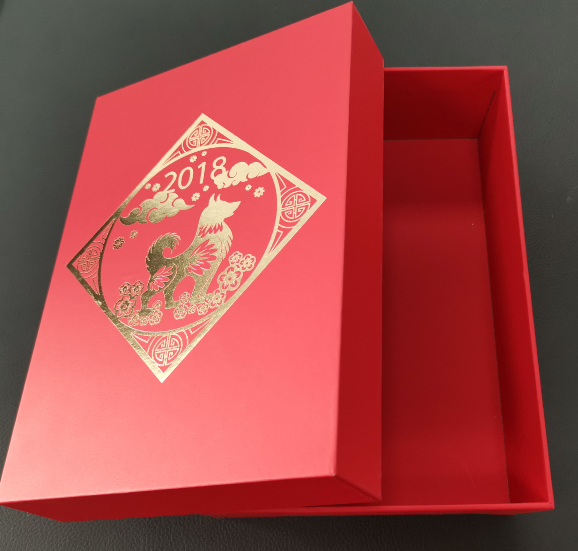

Box Corner Pasting Tape Hot-melt Adhesive Tape is mainly used for fixing the four corners of rigid boxes such as boutique boxes, gift boxes, mobile phone boxes, shoeboxes and so on (material: yellow kraft paper, white kraft paper, PET) and supporting (Zhongke, Hongming, Zhengrun, Fuzhong Japan, EMMECI Italy, Wellmark ,etc.) the machine is Automatic Four Corner Pasting Machine and automatic and manual Box Corner Pasting Machine. It can also improve production efficiency with good quanlity boxes.


Product Application

This Box Corner Pasting Tape working for Automatic Corner Pasting Machine.and Semi-Automatic Corner Pasting Machine to pasting different Rigid boxes ect..


Corner Pasting Tape / Hot Melt Tape 0




Product Name Box Corner Pasting Tape for pasting box corner
Color Transparent
Glue Type Hot melt glue
Applicable Fields Printing and packaging; Gift boxes and so on
Equipment suited Various stick corner machine, box making machine; four corners machine ect..
Based Material PET
Size 1.5cm*300m
Weight 12KG per carton
Specifications 70um thickness,300 meters length,15mm width, 30 rolls per carton.


Usage method

Box Corner Pasting Tape Control the temperature between 160 centidegree to 175 centidegree. Used on automatic/semi Auto case making machine, box corner pasting machine,box four sides forming machine, automatic box wrapper, automatic rigid box making machine and so on.


Product Features


1. It is Strong adhesive glue last for long time

2. It is Thickness is for common use

3. It is Anti- curl, good toughness

4. It is Strong Tension force, not easy to break

5. It is Long time Resistance for high temperature

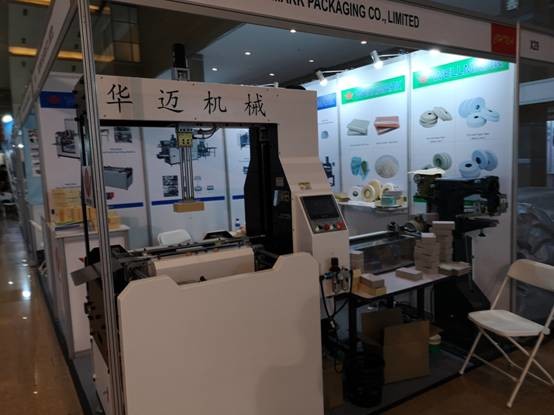

Our Exhibitions


We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.


Corner Pasting Tape / Hot Melt Tape 1


Packing and Shipping


Packing by canton boxes, then put onto the pallets for shipping.


Corner Pasting Tape / Hot Melt Tape 2
