|Molding Method:||Six Servo And Cylinder||Production Speed:||800-1000/hours|
|Air Pressure:||0.6-0.8MPa||Keyword:||Carton Box Stretch Wrapping Machine|
carton box stretch wrapping machine,
box shrink wrap machine,
Servo Rigid Box Forming Machines
Servo Rigid Box Forming Machines/ Forming Machine Use For Rigid Box Wrapping
Servo Rigid Box Forming Machine.pdf
1. The spindle, dividing die, brushing roll, folding edge and bubbling are all driven by servo. The operation is stable, quiet, smooth and fast.
2. The unique function of defoaming the cam and cylinder boxes twice can be selected once or twice according to the situation. The air storage adjustable bottom die lifting design can control the defoaming force at the bottom of the carton.
3. The helical gear mechanism drives the main shaft action, which is stable, accurate, firm, high output and long service life. The whole machine can realize slow action operation of playback type.
The cam mechanism can get smooth motion, and keep synchronization when the speed changes. It is easier to observe the production process when debugging.
4. Ear folding action can be used for 80MM tower, guide rail and cylinder, high precision, customizable travel, and can meet the production needs of different products.
5. The pressure of vacuum suction box can be adjusted. Different pressures can be selected for different size boxes, which is helpful to the smoothness and speed of manual suction box.
6. Design of fast mode changer, program memory function, 15 minutes to complete the conversion.
7. Import grating protection, fault alarm, fault area display, to ensure the safety of operation.
8. Thickening table, frame and CNC machining center are completed at one time to ensure the stability of operation and standardization of assembly.

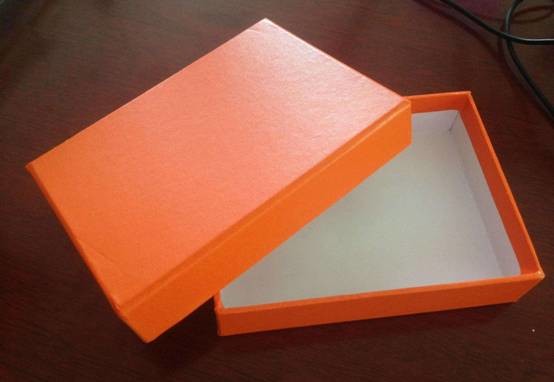

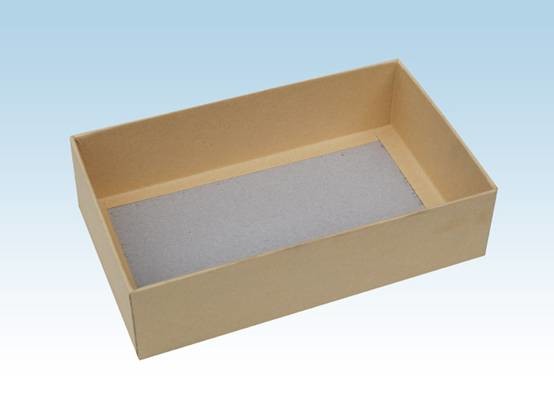

This machine is our company's latest research and development of automatic servo rigid box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.
|Thickness of paperboard||Range||1-3mm|
|Thickness of paper||Range||80g-300g|
|Folding Edge Inside size||Range||15-80mm|
|Folding Ears size||Range||10-100mm|
|Machine Overall Dimension||L110*W120*H280cm|
1. Very simple to operate, quickly change model and set machine
2. PLC touch screen, very simple to use, can set the quantity and record quantity which be made.
3. Six servo motors to make accurate forming.
4. Forming and pressure bubble together, do not need to pressure bubble again after forming.
5. Has four forming types can choose, suitable for making special box.
6. Use imported bearings and electronic components, making stable and longer uselife.
7. Add a air container to make the air pressure in one level all the time, This will help to avoid damge machine because the unstable air pressure.
This Machine most use on all kind of rigid box to cover paper and wrapping and folding in and pressing air bubbles ect.
We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
Packing and Shipping
Packaging Details: wooden case
