|Product Type:||Paper Box Making Machine||Automatic Grad:||Automatic|
|Place Of Origin:||Guangdong, China (Mainland)||Application:||Corner Pasting|
|Packaging Type:||Wood Case||Dimension(L*W*H):||L2000 X W1180 X H1970MM|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Warranty:||1 Year|
paper box manufacturing machine,
industrial box making machines
Automatic Rigid Box Four Corner Pasting Machine for Rigid Gift Boxes Corner
Automatic Rigid Box Forming Machine catalog.pdf
1. High speed automatic feeding the grey board and automatic pasting the four corner in once time finished.
2. Adjust the grey board size is very simple with fast time.
3. Adjusting the length of the tape is also very convenient and fast. 4. Adjust the box size for pasting are convenient and fast.
5. The time of sticking angle is as short as 0.1 seconds, and the fastest speed of sticking angle is 5000 per hour.e.
6. Use moulds to postion the rigid box to automtic pasting the box corner by high speed.
7. With auxiliary carton forming device, it is convenient for all kinds of cartons to stick corners perfectly.
8. Replacement of cartons and moulds of different sizes is simple and fast.
|MAX.SIZE OF BOX||400*300*120mm|
|MIN.SIZE OF BOX||40x40x10mm|
|MACHINE SIZE||L2000 X W1180 X H1970MM|
Other Product Recommend
WM-40A Automatic Four Corner Pasting Machine is the best equipment to produce high-grade rigid boxes. Reasonable design, stable performance, equivalent to the international leading technology level. Adopt PLC programmable controller,high speed belt to feeding the grey board by automatic , touch human-machine interface. Realize the automatic grey board sending and pasting the four corner with hotmelt tape by moulding of one-time finish. The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class electronic box, jewelry box, and other high-grade packing gift box cover heaven and earth.
1. the machine simple operation, fast working speed, high production efficiency, high cost performance.
2. The machine can use various hot-melt adhesive tape, the width is usually 19mm.other width of tape have to special to make it .
3. Stepper motors feed hot melt tapes which are pasted onto 4 corners at the same time
4. The machine adopts single arm press device and thermostatic temperature control system.
5. Boards are fed from bottom, thus no need to stop the machine for adding boards.
6. All electric parts are from famous brand, low error and high precision.
7. With malfunction alarm and fault display.
8. Operated by touch screen, with both Chinese and English by one switch.
9. The mainshaft adopts servo motor to drive the gear guide rail, making sure every accurate movement.
10. The length of adhesive tape can be adjusted between 10-50mm length by once for the different boxes.

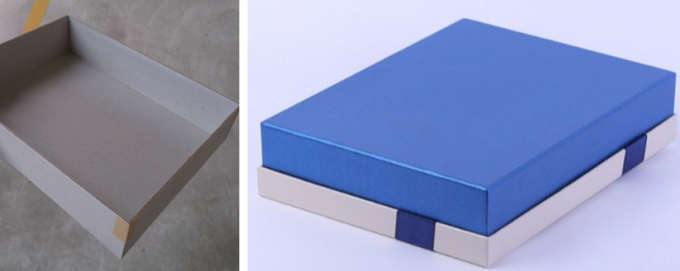

Rigid Box Product flew
This machine use for pasting box corner of all kind rigid boxes .
1. Before production, please wear labor protection equipment to ensure the health and safety of operators.
2. Verify whether the equipment is in normal condition before the equipment is running, such as checking the air pressure, resetting the mould, etc.
3. When problems are found, please solve them in time. We can't continue production without problems.
4. Compliance with safety precautions during production can prevent accidents and potential hazards.
5. It is forbidden to touch the high-temperature head-mounted parts by hand after being heated by electricity.
6. The equipment can not touch any rotating parts and movable parts in the operation process, so as to avoid causing personal injury.
7. Keep all air passages open.
8. Please designate professionals to train on-the-job operation and maintenance equipment.
9. No touch adjustment is allowed when the equipment is running.
We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
Packing and Shipping
Packaging by wooden case and shipping by containers.
Contact Person: Janey
