Product Details:
|
| Product Type: | Paper Box Making Machine | Automatic Grad: | Automatic |
|---|---|---|---|
| Place Of Origin: | Guangdong, China (Mainland) | Brand Name: | WELLMARK |
| Model Number: | WM-SJT40 | Application: | Corner Pasting |
| Packaging Type: | Wood Case | Dimension(L*W*H): | L2000 X W1180 X H1970MM |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
| Highlight: | fully automatic rigid box making machine,automatic rigid box machine,automatic gift box making machine |
||

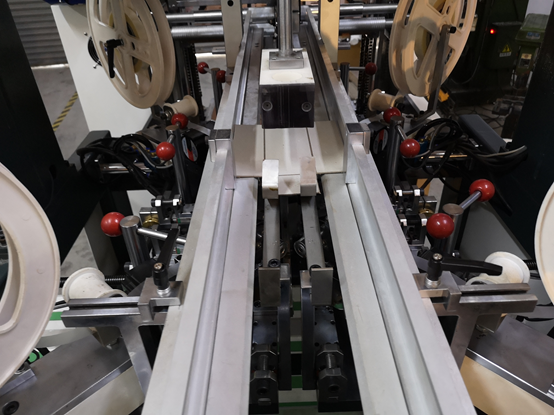

Gift Box Corner Pasting Machine
Automatic Corner Pasting Machine Catalog.pdf
Product Feature
1. The machine adopts single arm press device and thermostatic temperature control system.
2. The machine can use various hot-melt adhesive tape, the width is usually 19mm.other width of tape have to special to make it .
3. The length of adhesive tape can be adjusted between 10-50mm length by once for the different boxes.
4. the machine simple operation, fast working speed, high production efficiency, high cost performance.
5. Operated by touch screen, with both Chinese and English by one switch.
6. All electric parts are from famous brand, low error and high precision.
7. With malfunction alarm and fault display.
8. Boards are fed from bottom, thus no need to stop the machine for adding boards.
9. The mainshaft adopts servo motor to drive the gear guide rail, making sure every accurate movement.
10. Stepper motors feed hot melt tapes which are pasted onto 4 corners at the same time.
Techical Parameters
| MODEL | WM-40A |
| WORKING SPEED | 30-80pcs/min |
| MAX.SIZE OF BOX | 400*300*120mm |
| MIN.SIZE OF BOX | 40x40x10mm |
| POWER | 2.0KW |
| AIR PRESSURE | ≧0.6Mpa |
| POWER SUPPLY | 220V/50HZ |
| MACHINE SIZE | L2000 X W1180 X H1970MM |
| MACHINE WEIGHT | 1000KG |
Other Product Recommend
Corner Pasting Tape / Kraft Paper Tape
Product Description
WM-40A Automatic Four Corner Pasting Machine is the best equipment to produce high-grade rigid boxes. Reasonable design, stable performance, equivalent to the international leading technology level. Adopt PLC programmable controller,high speed belt to feeding the grey board by automatic , touch human-machine interface. Realize the automatic grey board sending and pasting the four corner with hotmelt tape by moulding of one-time finish. The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class electronic box, jewelry box, and other high-grade packing gift box cover heaven and earth.
Product Advantage
1. Adjust the box size for pasting are convenient and fast.
2. The time of sticking angle is as short as 0.1 seconds, and the fastest speed of sticking angle is 5000 per hour.e.
3. With auxiliary carton forming device, it is convenient for all kinds of cartons to stick corners perfectly.
4. High speed automatic feeding the grey board and automatic pasting the four corner in once time finished.
5. Adjusting the length of the tape is also very convenient and fast.
6. Use moulds to postion the rigid box to automtic pasting the box corner by high speed.
7. Adjust the grey board size is very simple with fast time.
8. Replacement of cartons and moulds of different sizes is simple and fast.
Our Exhibitions
We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
