Product Details:
|
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Automatic Grade: | Automatic |
| Type: | Boxing Machine | Product Name: | Automatic Rigid Box Making Machine Paper Box Forming Machine |
| Glue Type: | Hot Melt Glue | Tape Type: | PET Tape |
| Highlight: | fully automatic rigid box making machine,automatic rigid box machine,automatic gift box making machine |
||
Automatic Rigid Box Machine / Box Machine for Gift Box
WM-DC450AB.pdf
Product Advantage
In feida, gluing and conveyor belt using well-known brand servo drive, stepless variable speed, high precision, easy to adjust, save time; Image positioning system and robot grasping parts are adopted in the corner and positioning part to improve positioning accuracy and efficiency. The error range is up to ±0.05mm, and the positioning and debugging speed is faster. The machine adopts THK linear guide rail and virtual electronic CAM drive, which is more stable and wear-resistant and moves more smoothly, with a larger size range of folding depth and folding length.
The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class electronic box, jewelry box, and other high –grade packing gift box cover heaven and earth.
Rigid Box Product flew
Other Product Recommend
Hot Tape Pasting Box Corner
Hot Melt Glue for positioning gluing machine
Technical Parameter
| Model | WM-DC450A |
| Widest(W) | 630mm |
| Narrowest(W) | 95mm |
| Longest(L) | 820mm |
| Shortest(L) | 120mm |
| Longest(L) | 450mm |
| Shortest(L) | 80mm |
| Widest(W) | 400mm |
| Narrowest(W) | 60mm |
| Highest(H) | 120mm |
| Shortest(H) | 15mm |
| Thickness of Paperboard(T) | 1.0mm-3.0mm |
| Thickness of Paper(g/㎡) | 80g/㎡-300g/㎡ |
| Speed | ≤32pcs/min |
| Air pressure | 0.6-0.8MPa |
| Voltage | 380V/50Hz |
| Power | 18Kw |

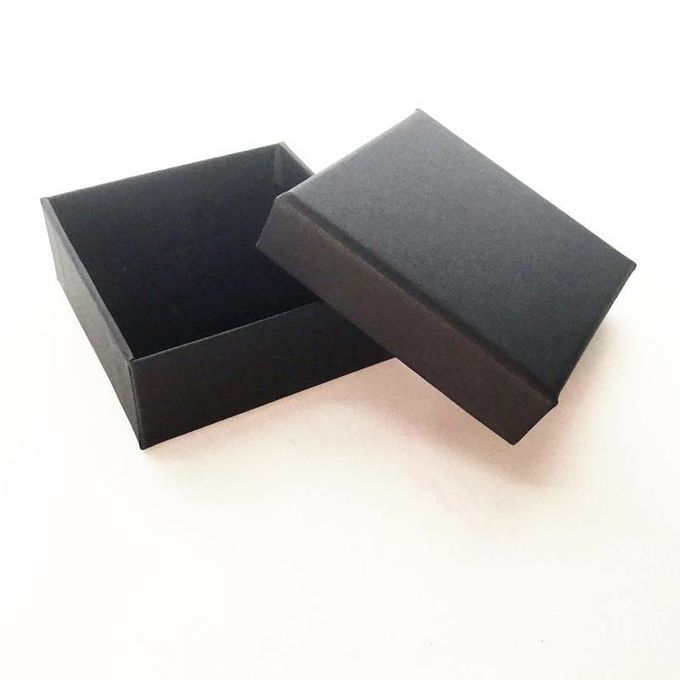

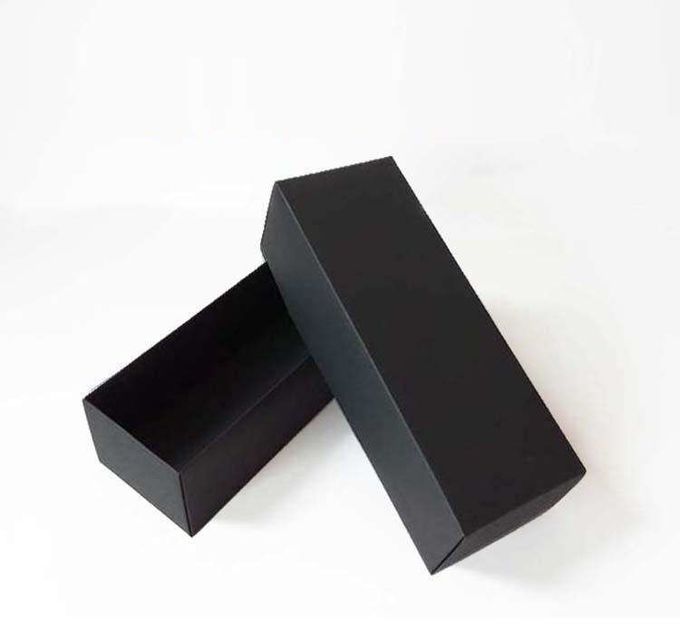

Product Application
Our Exhibitions
We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
