Full Automatic Jewelry Box Making Machine

Basic Information
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: CE
Model Number: WM-4045A/B
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: two weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 30 working days
Detail Information
Condition: New Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Speed: 15-25pcs/min
Automatic Grade: Automatic Color: Customization
High Light:

automatic paper box making machine

,

food box making machine


Product Description

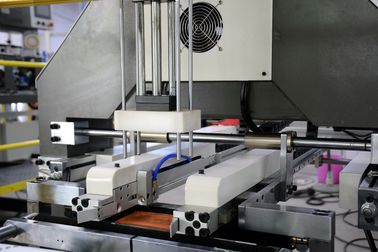

Full Automatic Jewelry Box Making Machine







Product Advantage



1.High positioning accuracy with a positive and negative error of 0.05mm.
2. Visual deviation correction positioning auxiliary function, the manipulator can automatically adjust the positioning position.
3. Automatic feida paper feeding, simple, efficient and stable production.
4. Specially designed gluing roller can adjust thinner and more uniform gluing coating on paper surface.
5. Specially designed gluing backflow device can make gluing easy to backflow into gluing barrel and circulate.
6. Relatively closed circulation design can reduce the temperature loss of glue.
7. Special paper unloading blade is easy to glue at high speed.
8. The conveyor belt is equipped with strong suction air to make the coated surface paper more stable on the conveyor belt.
9. Can choose to increase the glue precision automatic detection control device.
10. Automatic delivery carton or cardboard can be selected for positioning



Technical Parameter



Model WM-4045A WM-4045B
Widest(W) 630mm 630mm
Narrowest(W) 95mm 95mm
Longest(L) 820mm 820mm
Shortest(L) 120mm 120mm
Longest(L) 450mm 450mm
Shortest(L) 100mm 100mm
Widest(W) 400mm 400mm
Narrowest(W) 80mm 80mm
Highest(H) 120mm 120mm
Shortest(H) 15mm 15mm
Thickness of Paperboard(T) 1.0mm-4.0mm 1.0mm-4.0mm
Thickness of Paper(g/㎡) 80g/㎡-300g/㎡ 80g/㎡-300g/㎡
Speed ≤32pcs/min ≤32pcs/min
Air pressure 0.6-0.8MPa 0.6-0.8MPa
Voltage 380V/50Hz 380V/50Hz
Power 18Kw 18Kw
Weight 5800Kg 5800Kgs
Machine Size L7300*W4300*H3100mm L8800*W4300*H3100mm



Rigid Box Product flew

Full Automatic Jewelry Box Making Machine 0

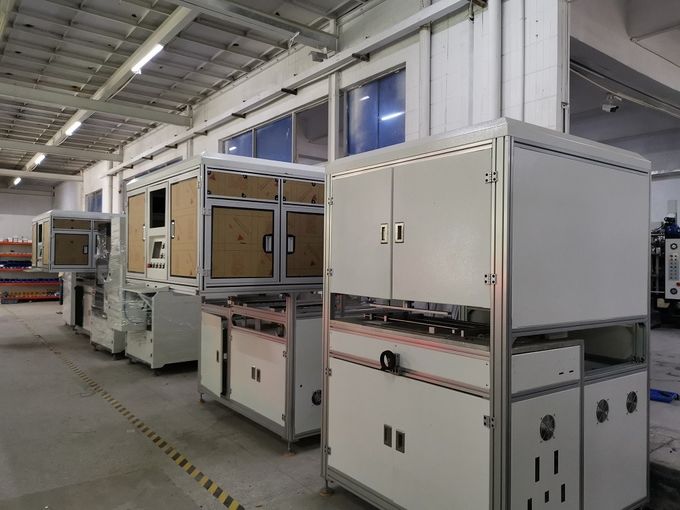

Work Shop Image



Full Automatic Jewelry Box Making Machine 1



Our Services



1. Pre-Sales Service:

Inquiry and consulting support.
Sample testing support.
View our Factory.



2. After-Sales Service

Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.



3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and after sales service for all of our customers.
