Full Automatic Rigid Box Making Machine/ Cell Phone Box Making Machine

Basic Information
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: CE
Model Number: WM-DC450A/B
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-10 workdays
Payment Terms: L/C, T/T
Supply Ability: 1 set per 30 working days
Detail Information
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Automatic Grade: Automatic Name: Allrasie Semi Automatic Rigid Cardboard Box Making Machine
Color: Customization Driven Type: Electric&pneumatic
High Light:

automatic paper box making machine

,

food box making machine


Product Description

Full Automatic Rigid Box Making Machine/ Cell Phone Box Making Machine







Product Features



1, The machine automatic feeding paper and gluing, automatic feeding grey board , manipulator taking box positioning, mechanical arm holding box forming and pressing air bubbles an intelligent production line is completed.

2, 24-hours control for glue pre-heating function

3, Spotter by 2pcs of 5 megapixel HD Camera tracing system and YANAHA mechanical arm to positioning (spotting accuracy≤0.1mm)

4,The automatic corner pasting is controlled by heating alone

5,The forming part of boxes is accomplish intelligently with mechanical arm holding box, edge wrapping, ear folding, folding-in and air bubbles pressing.

6, The whole machine adopts PLC control, HD Camera positioning system , touch human-machine interface, the automatic production of rigid boxes forming process.



Technical Parameter

Model WM-DC450A WM-DC450B
Widest(W) 630mm 630mm
Narrowest(W) 95mm 95mm
Longest(L) 820mm 820mm
Shortest(L) 120mm 120mm
Longest(L) 450mm 450mm
Shortest(L) 80mm 100mm
Widest(W) 400mm 400mm
Narrowest(W) 80mm 80mm
Highest(H) 120mm 120mm
Shortest(H) 15mm 15mm
Thickness of Paperboard(T) 1.0mm-4.0mm 1.0mm-4.0mm
Thickness of Paper(g/㎡) 80g/㎡-300g/㎡ 80g/㎡-300g/㎡
Speed ≤25pcs/min ≤32pcs/min
Air pressure 0.6-0.8MPa 0.6-0.8MPa
Voltage 380V/50Hz 380V/50Hz
Power 18Kw 18Kw
Weight 5800kgs 5800Kgs
Machine Size L7300*W4300*H3100mm L8800*W4300*H3100mm













































Rigid Box Product flew



Full Automatic Rigid Box Making Machine/ Cell Phone Box Making Machine 0

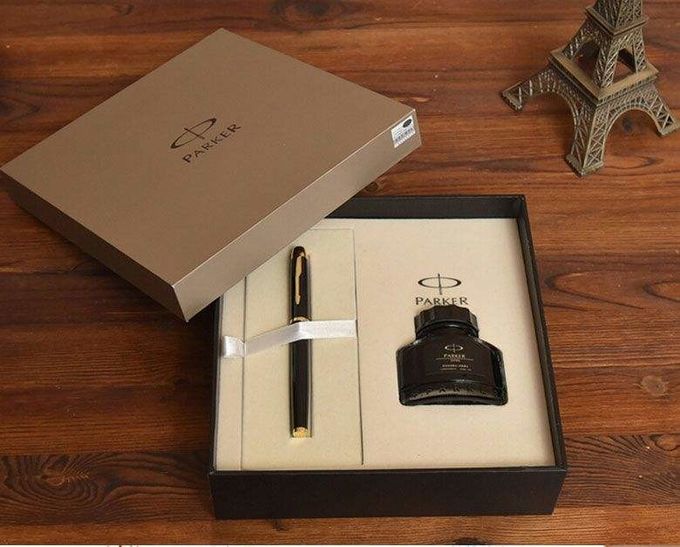

Finished Boxes



Full Automatic Rigid Box Making Machine/ Cell Phone Box Making Machine 1  Full Automatic Rigid Box Making Machine/ Cell Phone Box Making Machine 2



Our Exhibitions



We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.

Full Automatic Rigid Box Making Machine/ Cell Phone Box Making Machine 3



Frequently Asked Questions



Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood box. Suitable for exporting.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos and video of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CIF.

Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your down payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to my requests?
A: Yes, we can produce according to your requests. We can design and develop the machine.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
