Product Details:
|
Voltage: | 220V/50HZ | Automatic Grade: | Automatic |
---|---|---|---|
Driven Type: | Electric & Pneumatic | Warranty: | 12 Months |
Dimension(l*w*h): | Check Below | Usage: | Packaging Carton Box |
Highlight: | wrapping machine for boxes,perfume box wrapping machine,rigid box forming machine |
Jewelry Box Forming Machine / Semiautomatic Box Wrapping Machine
Automatic Rigid Box Forming Machine catalog.pdf
Product Application
Intelligent automatic forming machine is the best equipment to produce many high-grade gift boxes of different size. Reasonable design, stable performance, equivalent to the world’s leading technology level. PLC programmable controller is used to touch the man-machine interface. Maximum 239 different size memory storage, the fastest 5-10 minutes to replace different size of molds. The efficiency of changing different size of the machine is several times higher than that of the traditional forming machine. It also has the functions of automatic fault diagnosis, display and alarm, and ensures the safety of operation. Suitable for making high-end electronic product boxes, jewelry boxes and other high-end packaging cover type gift boxes.
Technical Parameter
Model | WM-500A | WM-350A |
Longest(L) | 500mm | 380mm |
Shortest(L) | 80mm | 45mm |
Widest(W) | 400mm | 350mm |
Narrowest(W) | 60mm | 40mm |
Highest(H) | 120mm | 90mm |
Shortest(H) | 12mm | 12mm |
Folding Edges Inside Length | 10-80mm | 10-70mm |
Folding Ear Length | 10-100mm | 10-70mm |
Thickness of Paperboard(T) | 1.0mm-4.0mm | 1.0mm-4.0mm |
Thickness of Paper(g/㎡) | 80g/㎡-300g/㎡ | 80g/㎡-300g/㎡ |
Speed | ≤20/pcs/min | ≤20pcs/min |
Air pressure | 0.6-0.8MPa | 0.6-0.8MPa |
Voltage | 220V/50Hz | 220V/50Hz |
Power | 1.5kw | 1.5kw |
Weight | 1100kgs | 950kgs |
Machine Size | L1200*W1500*H2200mm | L1100*W1400*H2000mm |

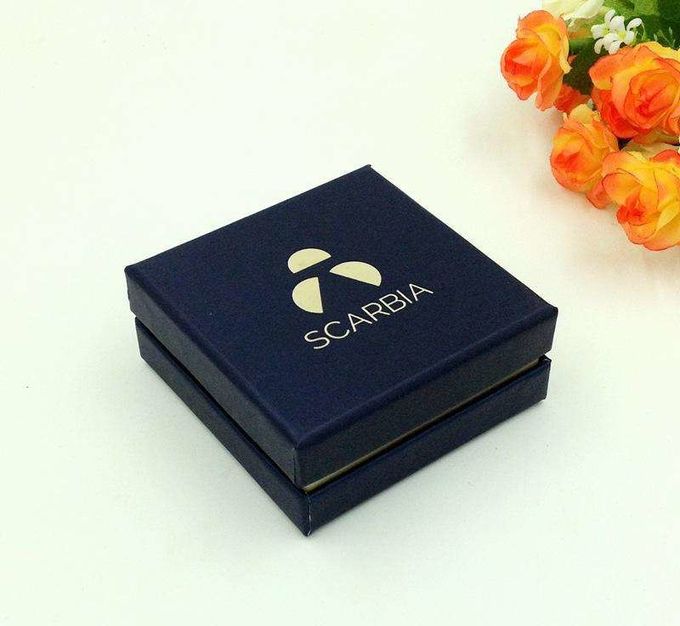

Finshed Picture
Work Shop Image
Our Packaging
Our Services
1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
3. Warranty
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.
Look forward to long term cooperation with customers, we will make best service and after sales service for all of our customers.
