Manual Rigid Box Corner Pasting Machine

Manual Rigid Box Corner Pasting Machine
Manual Rigid Box Corner Pasting Machine
Manual Rigid Box Corner Pasting Machine Manual Rigid Box Corner Pasting Machine Manual Rigid Box Corner Pasting Machine Manual Rigid Box Corner Pasting Machine

Large Image :  Manual Rigid Box Corner Pasting Machine

Product Details:
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: CE
Model Number: WM-40
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: 1 set per 15 working days

Manual Rigid Box Corner Pasting Machine

Description
Speed: 15-25pcs/min Driven Type: Electric And Pneumatic
After-sales Service Provided: Video Technical Support Warranty: 1 Year
Type: Rigid Paper Box Machine Application: Machinery & Hardware
High Light:

paper box manufacturing machine

,

industrial box making machines

,

shoes box making machine

Manual Rigid Box Corner Pasting Machine

Product Application

WM-40 Corner Tapping Machine is a good equipment for making boxes for its fine design, reliable performances and international advanced technologies. It is applicable to make boxes for phones, shoes, cosmetics, shirts, moon cakes, liquors, cigarettes, tea, etc.



Technical Prameters



MODEL WM-40A
WORKING SPEED 30-80pcs/min
MAX.SIZE OF BOX 400*300*120mm
MIN.SIZE OF BOX 40x40x10mm
POWER 2.0KW
AIR PRESSURE ≧0.6Mpa
POWER SUPPLY 220V/50HZ
MACHINE SIZE L2000 X W1180 X H1970MM
MACHINE WEIGHT 1000KG



Production Note



1. Automatic heating and temperature control system with temperature digital display function.
2. The foot switch can freely operate the electric single arm pressure closing device and has the function of delay.
3. The paper box should be turned manually when the corners are attached.
4. The length of the adhesive tape can be adjusted within 5 to 35mm when the paper or plastic adhesive tape is used.



Other Product Recommend



Hot Tape Pasting Box Corner

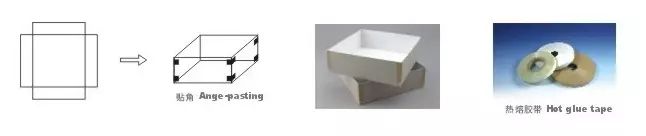

Production flow



Manual Rigid Box Corner Pasting Machine / Corner Pasting Machine 0

Product Features


1. Automatic heating and temperature control system with temperature digital display function.
2. The foot switch can freely operate the electric single arm pressure closing device and has the function of delay.
3. The paper box should be turned manually when the corners are attached.
4. The length of the adhesive tape can be adjusted within 5 to 35mm when the paper or plastic adhesive tape is used.
5. This machine adopts single arm press device and thermostatic temperature control system.
6. This machine can use various hot-melt adhesive tape such as kraft paper tape and PET tape, the width is usually 19mm.other width of tape have to special to make it .
7. The length of different tape can be adjusted between 10-50mm length by once for the different boxes.
8. this machine is simple operation, fast working speed, high production efficiency, high cost performance.

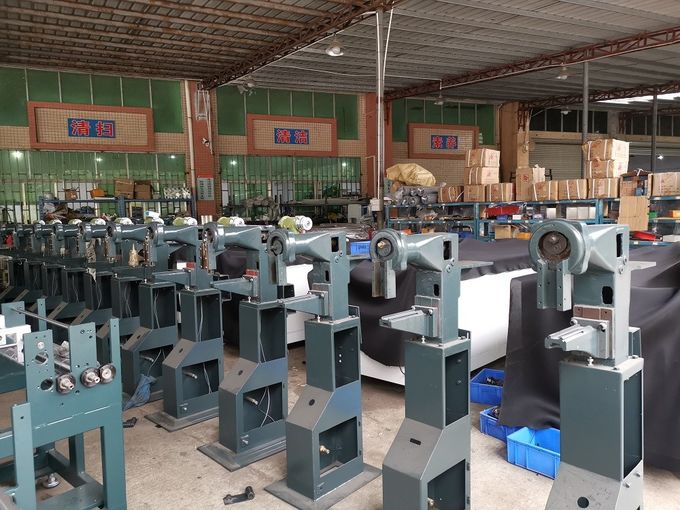

Work Shop Image



Manual Rigid Box Corner Pasting Machine 1



Packaging & Shipping


1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.

Manual Rigid Box Corner Pasting Machine 2



Our Services



A: Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.

B: After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. Engineers available to service machinery overseas.

C: Warranty:
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine’s quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
