Product Details:
|
| Condition: | New | Warranty: | One Year |
|---|---|---|---|
| Automatic Grade: | Automatic | Color: | Customized Color |
| Driven Type: | Electric&pneumatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | Hot Stamping Logo Printing Machine,Hot Stamping Machine,Hot Stamping Logo Machine |
||

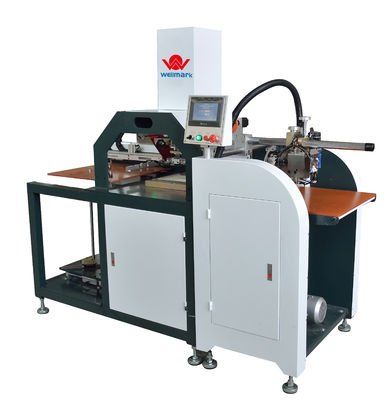

Automatic Hot Stamping Printing Machine
Product Introduction
Full automatic hot stamping machine is used for automatic paper feeding and hot stamping of cover paper. It is suitable for making boxes or hard case. The speed is adjustable, Hot stamping paper can choose any color, no scratching paper surface, good hot stamping effect, automatic paper feeding and receiving, high production efficiency. This machine adopts PLC programming technology and servo control, touch screen human-machine interface operation, parameter setting and fault automatic display and shutdown, safe, efficient and labor saving.
Machine Features :
1.Full automatic paper feeder and receiving.
2. Independent paper separation mechanism to ensure single sheet operation.
3. Servo paper feeding mechanism, high precision and efficiency
4. Intelligent digital temperature control, automatic constant temperature, uniform heating.
5. The servo pressure is large and stable and efficient
6. High temperature resistant silica base plate makes hot stamping better.
Technical Parameter
| MODEL | WM-TY2016 |
| LENGTH | W100-550MM |
| WIDTH | W100-500MM |
| PAPER THICKNESS | 80-350GSM |
| Max.Hot Stamping Size | 200mm*160mm |
| Min.Hot Stamping Size | No fix |
| WORKING SPEED | 20-36PCS/MIN |
| POWER | 1KW |
| AIR PRESSURE | 0.5-0.8MPa |
| VOLTAGE | 220V/50HZ |
| MACHINE WEIGHT | 800KG |
| MACHINE SIZE | 2200*1200*1600MM |
Work shop image
Packing Method
