Full Automatic Rigid Box / Paper Box Making Machine

Basic Information
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: CE
Model Number: WM-DC450A/B
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: 1 set per 20 working days
Detail Information
Dimension(l*w*h): 4300(W) * 7300(L)* 3100mm(H) Warranty: One Year
After-sales Service Provided: Field Maintenance And Repair Service Product Name: Automatic Rigid Box Making Machine Paper Box Forming Machine
Driven Type: Electric&pneumatic Type: Boxing Machine
High Light:

380V Paper Box Making Machine

,

18KW Paper Box Making Machine

,

CAM Drive Rigid Box Making Machine


Product Description

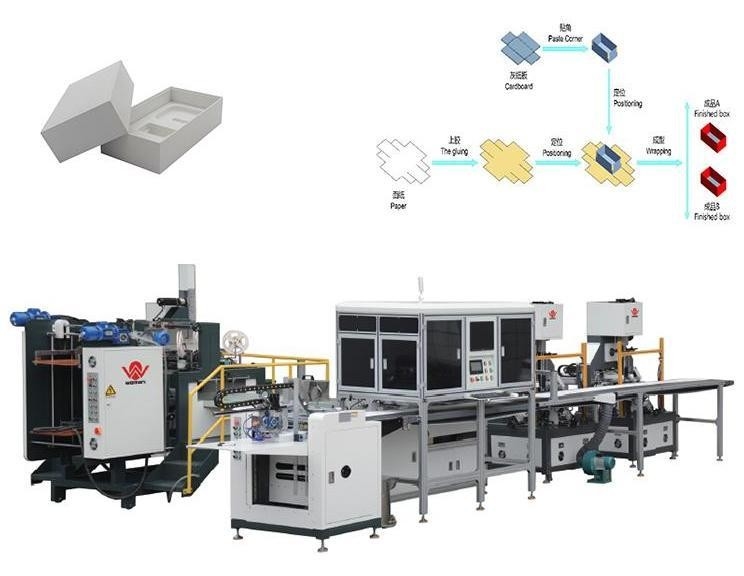

Full Automatic Rigid Box / Paper Box Making Machine







Product Advantage

In feida, gluing and conveyor belt using well-known brand servo drive, stepless variable speed, high precision, easy to adjust, save time; Image positioning system and robot grasping parts are adopted in the corner and positioning part to improve positioning accuracy and efficiency. The error range is up to ±0.05mm, and the positioning and debugging speed is faster. The machine adopts THK linear guide rail and virtual electronic CAM drive, which is more stable and wear-resistant and moves more smoothly, with a larger size range of folding depth and folding length.
The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class electronic box, jewelry box, and other high –grade packing gift box cover heaven and earth.

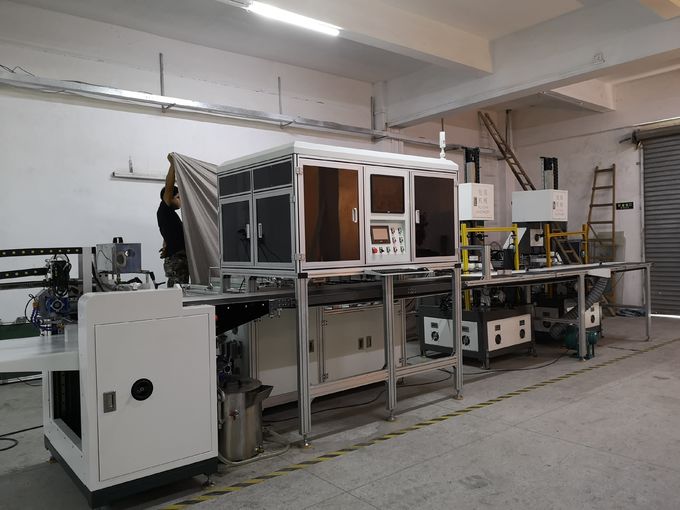

Work Shop Image



Automatic Vision Positioning Box Making Machine For Phone Box  Customized Color 1



Working Video


Full Automatic Rigid Box / Paper Box Making Machine 1

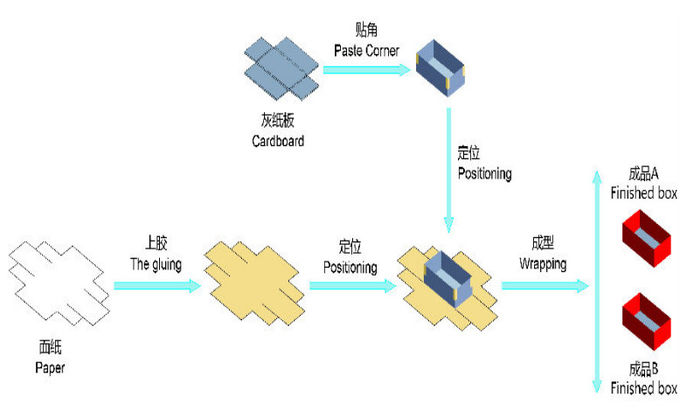

Rigid Box Product flew

Automatic Vision Positioning Box Making Machine For Phone Box  Customized Color 0



Technical Parameter

Model WM-DC450A WM-DC450B
Widest(W) 630mm 630mm
Narrowest(W) 95mm 95mm
Longest(L) 820mm 820mm
Shortest(L) 120mm 120mm
Longest(L) 450mm 450mm
Shortest(L) 80mm 100mm
Widest(W) 400mm 400mm
Narrowest(W) 80mm 80mm
Highest(H) 120mm 120mm
Shortest(H) 15mm 15mm
Thickness of Paperboard(T) 1.0mm-4.0mm 1.0mm-4.0mm
Thickness of Paper(g/㎡) 80g/㎡-300g/㎡ 80g/㎡-300g/㎡
Speed ≤25pcs/min ≤32pcs/min
Air pressure 0.6-0.8MPa 0.6-0.8MPa
Voltage 380V/50Hz 380V/50Hz
Power 18Kw 18Kw
Weight 5800kgs 5800Kgs
Machine Size L7300*W4300*H3100mm L8800*W4300*H3100mm













































Our Exhibitions



We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.


Full Automatic Rigid Box / Paper Box Making Machine 3
