Product Details:
|
| Automatic Grade: | Automatic | Function: | Box Making |
|---|---|---|---|
| Product Name: | Automatic Short Run Cardboard Box Making Machine | Driven Type: | Electric,Mechanical |
| Condition: | New | Speed: | ≤32pcs/min |
| Color: | Customized Color | Power: | 1.5kw |
| Highlight: | fully automatic rigid box making machine,automatic rigid box machine,automatic gift box making machine |
||
Full Automatic Chocolate Boxes Making Machine
Product Advantage
1. High positioning accuracy with a positive and negative error of 0.05mm.
2. Visual deviation correction positioning auxiliary function, the manipulator can automatically adjust the positioning position.
3. Automatic feida paper feeding, simple, efficient and stable production.
4. Specially designed gluing roller can adjust thinner and more uniform gluing coating on paper surface.
5. Specially designed gluing backflow device can make gluing easy to backflow into gluing barrel and circulate.
6. Relatively closed circulation design can reduce the temperature loss of glue.
7. Special paper unloading blade is easy to glue at high speed.
8. The conveyor belt is equipped with strong suction air to make the coated surface paper more stable on the conveyor belt.
9. Can choose to increase the glue precision automatic detection control device.
10. Automatic delivery carton or cardboard can be selected for positioning.
Techical Parameters
|
Paper Wrap Size (L=Length,W=Width) |
Widest(W) | 630mm |
| Narrowest(W) | 95mm | |
| Longest(L) | 820mm | |
| Shortest(L) | 120mm | |
|
Box Size L=Length W=Width H=Height |
Longest(L) | 450mm |
| Shortest(L) | 130mm | |
| Widest(W) | 400mm | |
| Narrowest(W) | 45mm | |
| Highest(H) | 120mm | |
| Shortest(H) | 15mm | |
| Thickness of Paperboard(g/m2) | Thinnest(T) | 1.0mm - 4.0mm |
| Thickness of Paper(g/m2) | Range | 80g/m2-300g/m2 |
| Speed | ≤32pcs/min | |
| Air pressure | 0.6-0.8MPa | |
| Voltage | 380V/50HZ | |
| Power | 18kw | |
| Net Weight | 5800kgs | |
| Machine Overall Dimension | L6.8m×W4.3m×H3.1m | |
Rigid Box Product flew

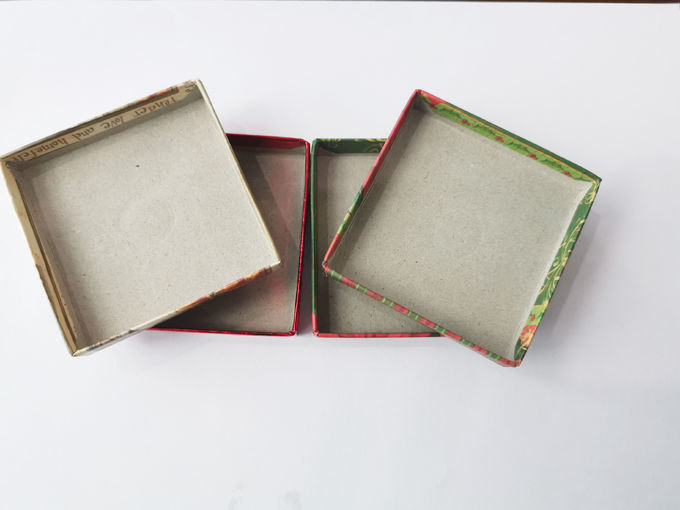

Product Application
This machine use for all kind of rigid boxes .
Our Exhibitions
We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
