Product Details:
|
| Product Name: | Automatic Rigid Box Making Machine Paper Box Forming Machine | Function: | Box Making |
|---|---|---|---|
| Min Box Size: | 80*60*15mm | Speed: | 32pcs/min |
| Warranty: | One Year | After-sales Service Provided: | Video Technical Support |
| Highlight: | fully automatic rigid box making machine,automatic rigid box machine,automatic gift box making machine |
||

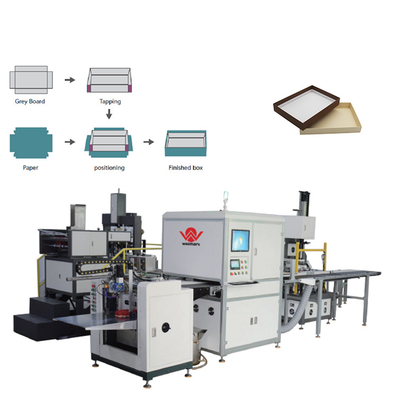

Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Product Application
It is the ideal processing equipment rigid box, box. First, Inner box bottom paste with surface paper, then fix the product on the mold of the forming machine by hand, different size box with different mod, then automatic four side pasting, folding, and bubble pressing. Hardcover box can greatly improve the production efficiency.
Other Product Application
Techical Parameters
|
Paper Wrap Size (L=Length,W=Width) |
Widest(W) | 630mm |
| Narrowest(W) | 95mm | |
| Longest(L) | 820mm | |
| Shortest(L) | 120mm | |
|
Box Size L=Length W=Width H=Height |
Longest(L) | 450mm |
| Shortest(L) | 130mm | |
| Widest(W) | 400mm | |
| Narrowest(W) | 45mm | |
| Highest(H) | 120mm | |
| Shortest(H) | 12mm | |
| Thickness of Paperboard(g/m2) | Thinnest(T) | 1.0mm - 4.0mm |
| Thickness of Paper(g/m2) | Range | 80g/m2-300g/m2 |
| Speed | ≤32pcs/min | |
| Air pressure | 0.6-0.8MPa | |
| Voltage | 380V/50HZ | |
| Power | 18kw | |
| Net Weight | 5800kgs | |
| Machine Overall Dimension | L8.8m×W4.5m×H3.1m | |

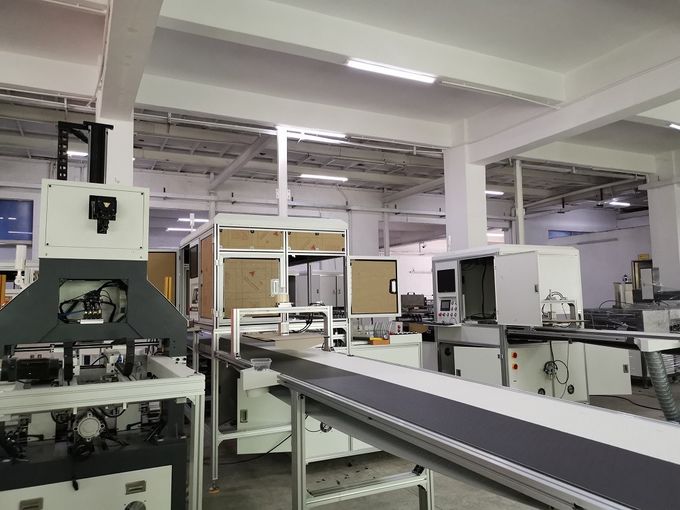

Work Shop Image
Our Services
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
