Product Details:
|
Name: | Semi Automatic Rigid Box Making Machine | Usage: | Paper Forming Machine |
---|---|---|---|
Type: | Rigid Paper Box Machine | Product Type: | Paper Box Making Machine |
Automatic Grade: | Semi-Automatic | Voltage: | 380V/50HZ |
Highlight: | wrapping machine for boxes,perfume box wrapping machine,rigid box forming machine |

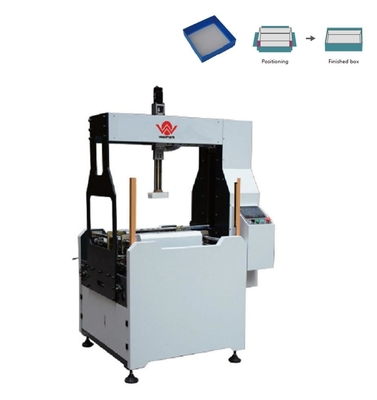

Semiautomatic Rigid Box / Gift Box Forming Machine
Automatic Rigid Box Forming Machine catalog.pdf
Product Description:
Automatic Rigid Box Forming Machine is our company's latest research and development of full automatic intelligence box molding machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.
Advantages
a, Very simple to operate, quickly change model and set machine
b, PLC touch screen, very simple to use, can set the quantity and record quantity which be made.
c, Double servo motors to make accurate forming.
d, Forming and pressure bubble together, do not need to pressure bubble again after forming.

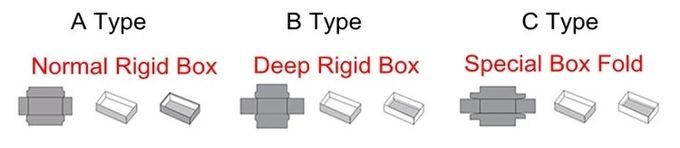

e, Has four forming types can choose, suitable for making special box.
f, Use imported bearings and electronic components, making stable and longer uselife.
g, Add a air container to make the air pressure in one level all the time, This will help to avoid damge machine because the unstable air pressure.
Product Application
This machine is automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes,finest jewelry boxes, ornaments boxes, and cosmetic boxes, etc.
Technical Parameter
Model | WM-500A | WM-350A |
Longest(L) | 500mm | 380mm |
Shortest(L) | 80mm | 45mm |
Widest(W) | 400mm | 350mm |
Narrowest(W) | 60mm | 40mm |
Highest(H) | 120mm | 90mm |
Shortest(H) | 12mm | 12mm |
Folding Edges Inside Length | 10-80mm | 10-70mm |
Folding Ear Length | 10-100mm | 10-70mm |
Thickness of Paperboard(T) | 1.0mm-4.0mm | 1.0mm-4.0mm |
Thickness of Paper(g/㎡) | 80g/㎡-300g/㎡ | 80g/㎡-300g/㎡ |
Speed | ≤20/pcs/min | ≤20pcs/min |
Air pressure | 0.6-0.8MPa | 0.6-0.8MPa |
Voltage | 220V/50Hz | 220V/50Hz |
Power | 1.5kw | 1.5kw |
Weight | 1100kgs | 950kgs |
Machine Size | L1200*W1500*H2200mm | L1100*W1400*H2000mm |
Packaging and Delivery
Packaging by wooden case, and delivery by containers.
