Product Details:
Place of Origin: China
Brand Name: wellmark
Model Number: WM-4045A/B
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wooden case
Delivery Time: one week
Payment Terms: L/C, T/T
Supply Ability: 1 set per 30 working days

Full Automatic Rigid Paper Box / Cell Phone Box Making Machine

Description
Automatic Grade: Automatic Type: Boxing Machine
Function: Box Making Production Capacity: 15-25pcs/min
Power: 18kw Max Box Size: 450(W)*400(L)*120(H)mm
High Light:

fully automatic rigid box making machine

,

automatic rigid box machine

,

automatic gift box making machine

Full Automatic Rigid Paper Box / Cell Phone Box Making Machine





Product Description


WM-4045A/B Fully Automatic Rigid Box Making Machine is the best equipment to produce high-grade products cover the boxes. Reasonable design, stable performance, equivalent to the international leading technology level. Adopt PLC programmable controller,HD Camera positioning system,Yamaha mechanical arm to positioning , touch human-machine interface. Realize the automatic paper, automatic gluing, automatic positioning, artificial boxes automatically fold the ear side pressure foam molding process action series of one-time finish. The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class electronic box, jewelry box, and other high-grade packing gift box cover heaven and earth.
Note: the maximum size of the box and minimal size depends on the paper at the same time the maximum and minimum size and surface quality of the paper. Speed will depending on the different boxes size with different paper materials.



Other Product Recommend



Hot Jelly Glue / Hot Melt Glue Use For Gluing Machine



Technical Parameter



Model WM-4045A WM-4045B
Widest(W) 630mm 630mm
Narrowest(W) 95mm 95mm
Longest(L) 820mm 820mm
Shortest(L) 120mm 120mm
Longest(L) 450mm 450mm
Shortest(L) 100mm 100mm
Widest(W) 400mm 400mm
Narrowest(W) 80mm 80mm
Highest(H) 120mm 120mm
Shortest(H) 15mm 15mm
Thickness of Paperboard(T) 1.0mm-4.0mm 1.0mm-4.0mm
Thickness of Paper(g/㎡) 80g/㎡-300g/㎡ 80g/㎡-300g/㎡
Speed ≤32pcs/min ≤32pcs/min
Air pressure 0.6-0.8MPa 0.6-0.8MPa
Voltage 380V/50Hz 380V/50Hz
Power 18Kw 18Kw
Weight 5800Kg 5800Kgs
Machine Size L7300*W4300*H3100mm L8800*W4300*H3100mm



Product Feature


1, Automatically feed paper and boxes
2, 24-hours control for glue pre-heating
3, Spotter by 2pcs of 5 megapixel HD Camera tracing system and Yamaha mechanical arm to positioning (spotting accuracy ≤0.1mm
4, Boxes molding department according to the boxes on the belt conveyor, operator collection box to molding department.
5, Boxes molding department, fold the ear, pressing the air bubble is forming a one-time.
6, The whole machine adopts PLC control, HD Camera positioning system, touch human-machine interface, the automatic production of rigid boxes forming process.
7, Computer control with error auto stop and display

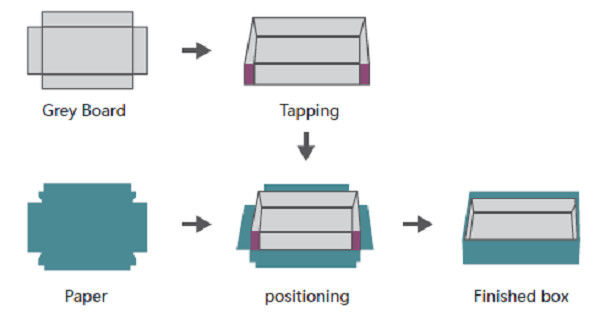

Rigid Box Product flew

Full Automatic Jewelry Box Making Machine 0

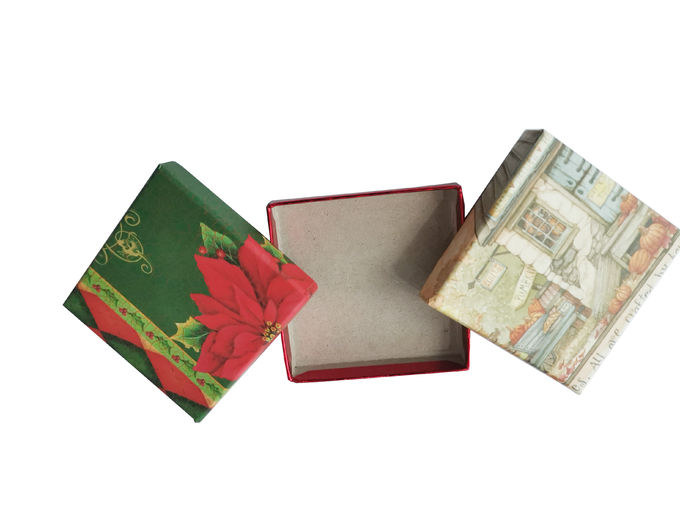

Product Application



This machine use for all kind of rigid boxes .

Full Automatic Rigid Paper Box / Cell Phone Box Making Machine 1
