Product Details:
|
| Type: | Wrapping Machine | Product Name: | Paper Box Forming Machine |
|---|---|---|---|
| Usage: | Box Forming | Function: | Box Making |
| Automatic Grade: | Automatic | Speed: | 15-25pcs/min |
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support |
| Highlight: | wrapping machine for boxes,perfume box wrapping machine,rigid box forming machine |
||

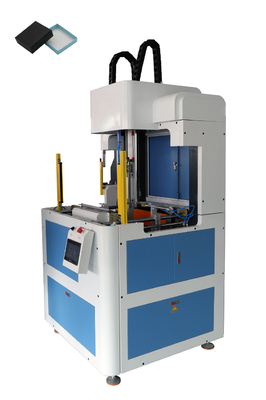

Cell Phone Box Wrapping Machine / Rigid Box Forming Machine
Automatic Rigid Box Forming Machine catalog.pdf
Product Description
This machine is our company's latest research and development of full automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.
Production Flow
Technical Parameters
| Model | WM-500A | |
| Box Size | Longest | 500mm |
| Shortest | 80mm | |
| Widest | 400mm | |
| Narrowest | 60mm | |
| Highest | 120mm | |
| Lowest | 12mm | |
| Thickness of paperboard | Range | 1-3mm |
| Thickness of paper | Range | 80g-300g |
| Folding Edge Inside size | Range | 10-70mm |
| Folding Ears size | Range | 10-100mm |
| Speed | ≦20pcs/min | |
| Air Pressure | 0.6-0.8MPa | |
| Voltage | 220V/50HZ | |
| Moter Power | 1.5KW | |
| Net Weight | 1080kgs | |
| Machine Overall Dimension | L120*W150*H220cm | |
Packing and Shipping:
Our Exhibitions
We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
