Automatic Folding Box Assembly Machine

Automatic Folding Box Assembly Machine
Automatic Folding Box Assembly Machine
Automatic Folding Box Assembly Machine Automatic Folding Box Assembly Machine Automatic Folding Box Assembly Machine Automatic Folding Box Assembly Machine

Large Image :  Automatic Folding Box Assembly Machine

Product Details:
Place of Origin: China
Brand Name: wellmark
Model Number: WM-9045C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wooden case
Delivery Time: one week
Payment Terms: L/C, T/T
Supply Ability: 1 set per 20 working days

Automatic Folding Box Assembly Machine

Description
Type: Boxing Machine Function: Box Making
Driven Type: Electric&pneumatic Warranty: 1 Year
Speed: 18-30pcs/min Condition: New
High Light:

fully automatic rigid box making machine

,

automatic rigid box machine

,

automatic gift box making machine

Automatic Folding Box Assembly Machine





Product Introduce



This machine is specially developed by our company for folding box products. It is suitable for folding box wings assembly and tail plate assembly. It can also assemble book-shaped boxes (replace the feeding module). The main machine is flexible and multi-purpose, allowing the machine to be more effective value.



Main Technical Parameter



Model WM-9045C
Dimension(L*W*H) 3600*2000*2000mm
Machine weight 800KG
Speed 18-30PCS/min
Max case size 900*450mm
Min case size 90*95mm
Max wings size 500*120mm
Min f wings size 100*30mm
Length range of wing center bar 65-400
Precision positioning ±0.1mm
Power supply AC220V
Power 8KW
Air pressure 0.6Mpa



Other Product Recommend



Hot Jelly Glue / EVA Glue / Hot EVA Glue



Process Flow



1. Adopting a downward suction structure to solve the problem of double or multiple case feeding and ensures that the case does not scratch.



2. Gluing is controlled by Japanese Panasonic servo motor, which makes the glue more precise.

The flexible line of gluing can be set freely on the screen according to product needs.

Optional hot and cold double glue system to make the product more viscous and anti-opening.



3. Adopting a four-station lifting table top feeding structure, one person can complete the feeding of the

skins and side wings, and the non-stop operation saves labor and improves efficiency. The book box can be assembled by replacing the feeding module with an assembly line, and the main machine structure is universal.



4. Positioning is controlled by Japanese Panasonic servo motor, which makes the positioning more

precise.

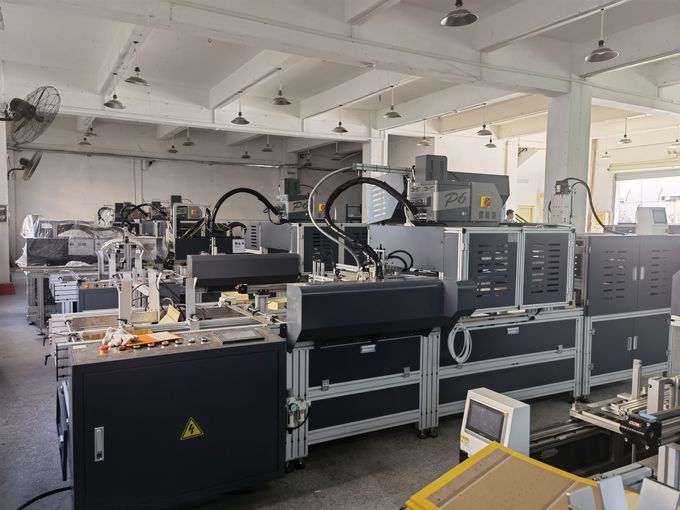

Work Shop Image



Automatic Folding Box Assembly Machine 0
