Type: | Folding Box Assembly Machine | Production Capacity: | 15-25pcs/min |
---|---|---|---|
Automatic Grade: | Automatic | After-sales Service Provided: | Online Support |
Warranty: | 1 Year | Voltage: | 220V/50Hz |
Highlight: | fully automatic rigid box making machine,automatic rigid box machine,automatic gift box making machine |
Folding Box Assembly Machine / Book - Type Box Assembly Machine
Product Introduce
This machine is specially developed by our company for folding box products. It is suitable for folding box wings assembly and tail plate assembly. It can also assemble book-shaped boxes (replace the feeding module). The main machine is flexible and multi-purpose, allowing the machine to be more effective value.
MAIN CONFIGURATION
Servo Motor | Panasonic |
Servo Driver | |
PLC | |
Photosensor | |
Vacuum Switch | |
Power Switch | MeanWell |
Proximity Switch | Schneider Electric SA |
Linear Module | CCM |
Hot melt glue machine | JING TAI |
Pneumatic Element | AIRTAC |
MAIN TECHNICAL PARAMETER
Model | WM-9045C |
Dimension(L*W*H) | 3600*2000*2000mm |
Machine weight | 约800KG |
Speed | 18-30PCS/min |
Max case size | 900*450mm |
Min case size | 90*95mm |
Max wings size | 500*120mm |
Min f wings size | 100*30mm |
Length range of wing center bar | 65-400 |
Precision positioning | ±0.1mm |
Power supply | AC220V |
Power | 8KW |
Air pressure | 0.6Mpa |
PROCESS FLOW
1. Adopting a downward suction structure to solve the problem of double or multiple case feeding and ensures that the case does not scratch.
2. Gluing is controlled by Japanese Panasonic servo motor, which makes the glue more precise.
The flexible line of gluing can be set freely on the screen according to product needs.
Optional hot and cold double glue system to make the product more viscous and anti-opening.
3. Adopting a four-station lifting table top feeding structure, one person can complete the feeding of the
skins and side wings, and the non-stop operation saves labor and improves efficiency. The book box can be assembled by replacing the feeding module with an assembly line, and the main machine structure is universal.
4. Positioning is controlled by Japanese Panasonic servo motor, which makes the positioning more
precise.

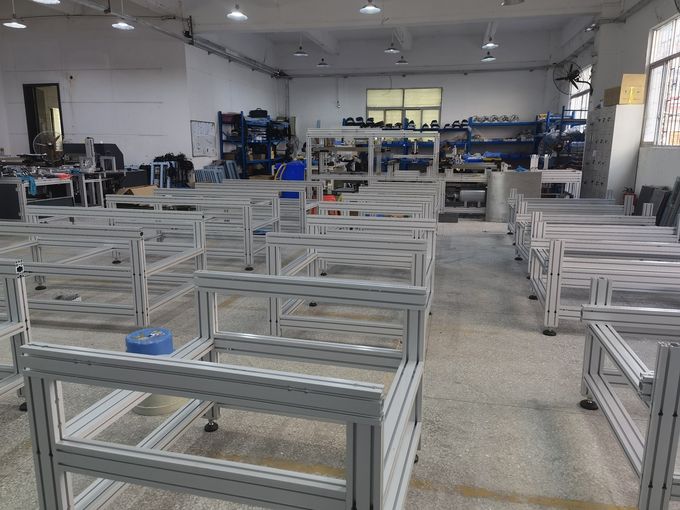

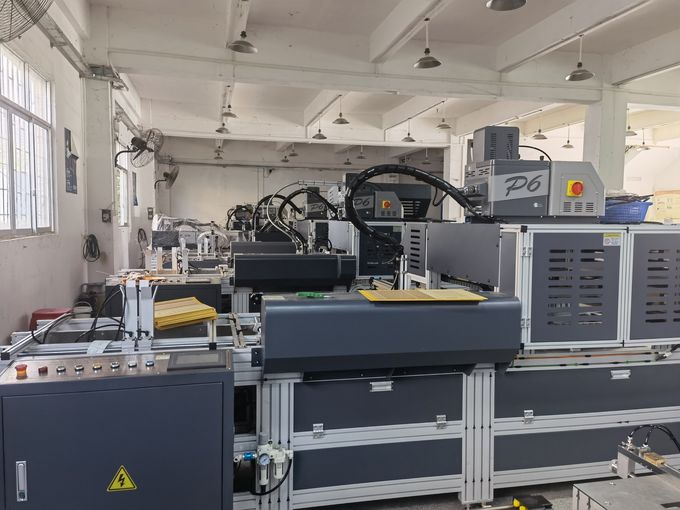

Work Shop Image
