Product Details:
|
| Product Type: | Ribbin Inserting Machine | Name: | Semiautomatic Ribbin Pasting Machine |
|---|---|---|---|
| Automatic Grade: | Semi-Automatic | After-sales Service Provided: | Online Support |
| Driven Type: | Electric | Weight: | 800kg |
| Warranty: | 1 Year | Voltage: | 220V |
| High Light: | semi automatic ribbon inserting machine,drawer box ribbon inserting machine,hardcase ribbon pasting machine |
||

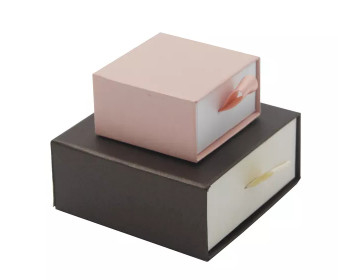

Multipurpose Ribbon Insertion Machine For Drawer Box Or Hard Case
Product Description

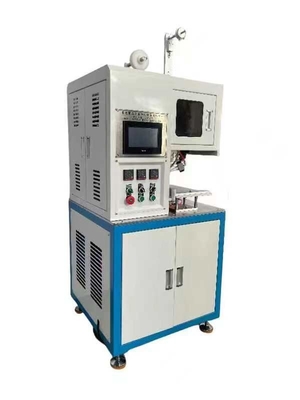

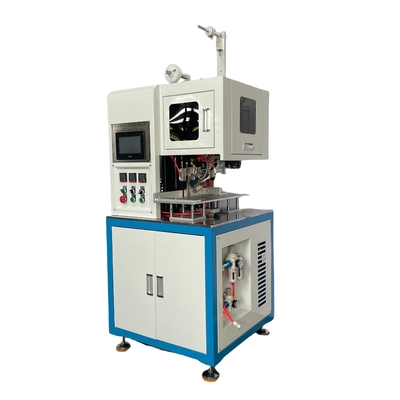

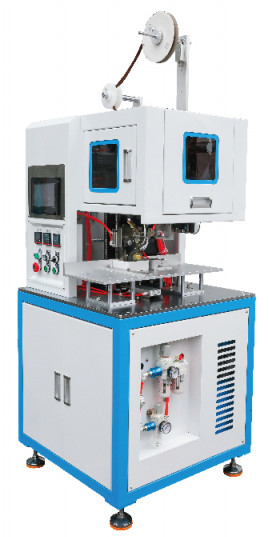

Multi-purpose Semiautomatic Ribbon Pasting Machine adopts ball screw drive, the alignment accuracy error is ±0.05mm, and the jack action is interspersed by imitating manual action to ensure that the integrity of the ribbon is not deformed. The longest ribbon is folded in half and left on the gray plate (box) with a length of 60㎜ and a minimum of 10mm. Ribbon length adjustment using step digital adjustment, accurate control of ribbon length (increase optical fiber and vision) can accurately complete the ribbon trademark and LOGO product gluing. This machine can paste flat ribbon and insert ribbon in drawer boxes.
Technical Parameter
| 型号 | Model | WM-S450 |
| 最大盒子尺寸 | Max box size | 120*300*400mm |
| 最小盒子尺寸 | Min box size | 10*50*50mm |
| 最宽皮壳尺寸 | Max width of Bookcase size | 450mm |
| 丝带宽 | Ribbon Width | 10-25MM |
| 生产速度 | Production Speed | 20-23pcs/min |
| 功率 | Power | 220V/2KW |
| 重量 | Weight | 200KG |
| PLC | PLC | XINJE |
| 整机尺寸 | Machine size | L700*W700*H1900 |
Our Exhibitions
We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
Packing and Shipping
Packing by canton boxes, then put onto the pallets for shipping.
