Manual Rigid Box Corner Pasting Machine / Corner Pasting Machine

Basic Information
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: SGS
Model Number: WM-40A
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wood Case
Delivery Time: 5-8 work day
Payment Terms: T/T, L/C at sight
Supply Ability: 50 sets per month
Detail Information
Product Type: Paper Box Making Machine Automatic Grad: Automatic
Place Of Origin: Guangdong, China (Mainland) Brand Name: WELLMARK
Model Number: WM-40A Application: Corner Pasting
Packaging Type: Wood Case Dimension(L*W*H): L2000 X W1180 X H1970MM
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year

Product Description

Manual Rigid Box Corner Pasting Machine / Corner Pasting Machine





Product Description

WM-40 Corner Pasting Machine is designed for the positioning and forming of rigid set up boxes and paper boxes by the application of high temperature tape belts. Thae machine is controlled by Pedal device. The core electric appliances are from Taiwan. After pasting, the products are upright in corners, firm, good-looking. They are indispensable superior machine for box making .The standard length of the tape is 1-3mm, and the machine can be remolded to 4 mm.

It is the great necessary semi auto equipment for making rigid set up box,use for finish process of pasting cardboard box corner.compact to designed with small size and light weight,easy to adjust and operate as requirement,can keep correct angle sticking, beautiful appearance, quick speed and favorable price. It is one of the perfect semi auto equipment for equipped your rigid box making line.


Product Features



1. Automatic heating and temperature control system with temperature digital display function.
2. The foot switch can freely operate the electric single arm pressure closing device and has the function of delay.
3. The paper box should be turned manually when the corners are attached.
4. The length of the adhesive tape can be adjusted within 5 to 35mm when the paper or plastic adhesive tape is used.
5. This machine adopts single arm press device and thermostatic temperature control system.
6. This machine can use various hot-melt adhesive tape such as kraft paper tape and PET tape, the width is usually 19mm.other width of tape have to special to make it .
7. The length of different tape can be adjusted between 10-50mm length by once for the different boxes.
8. this machine is simple operation, fast working speed, high production efficiency, high cost performance.



Technical Prameters



MODEL WM-40A
WORKING SPEED 30-80pcs/min
MAX.SIZE OF BOX 400*300*120mm
MIN.SIZE OF BOX 40x40x10mm
POWER 2.0KW
AIR PRESSURE ≧0.6Mpa
POWER SUPPLY 220V/50HZ
MACHINE SIZE L2000 X W1180 X H1970MM
MACHINE WEIGHT 1000KG



Product Application



This machine is designed for the positioning and forming of upper and lower boxes and inner boxes by the application of high-temperature tape belts to save costs. The products after pasting are upright in corners, firm,good-looking and quick in speed. They are indispensable supeerior machines for box making business.

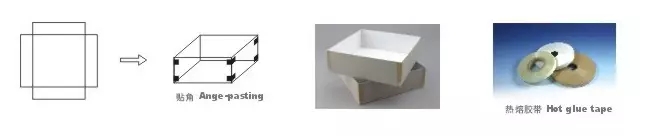

Production flow



Manual Rigid Box Corner Pasting Machine / Corner Pasting Machine



Packaging & Shipping


1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.



Our Services

1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.

2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.

3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
