Automatic Gluing Machine For Making Rigid Paper Box

Basic Information
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: CE
Model Number: WM-650A
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 5-10 workdays
Payment Terms: L/C, T/T
Supply Ability: 1 set per two weeks
Detail Information
Glue Type: Hot Melt Glue Type: Gluing Machine
Automatic Grade: Automatic Packaging Type: Case
Driven Type: Electric After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Color: Client's Request
High Light:

automatic carton folding gluing machine

,

auto gluing machine


Product Description

Automatic Gluing Machine For Making Rigid Paper Box





Function and features:



1. Manual feeder gluing machine is suitable for gluing the paper which is for making book cover, rigid box, set up box, etc.

2. It has the function of gluing, automatic temperature control and 24-hours timer.

3. The draft fan under the assembly lines prevents cover paper from curling and bubbling.

4. Feeder absorption and feed are applied, which contribute to the characteristic of steady and quick paper conveyance.

5. Hot melt adhesives (animal adhesives) are used for health and environmental protection, and they also save cost because of the recycle system and the adjustable speeds.



Product Description



Automatic gluing machine (feeder) has the function of automatic feed paper and gluing, automatic temperature control and 24-hours timer. The suction devices for the assembly lines prevent powder paper curling and bubbling. Fedia paper absorption and feed are applied, characteristic of steady and quick paper conveyance. Hot melt adhesives (animal adhesives) are used for health and environmental protection on the basis of recycling to save costs at the speeds adjustable. Remodel for White glue.



Product Application



Automatic set up box / carton box gluing machine

This machine has an indirect heating and temperature control system, which can be applied to the place where the working environment is low. The system models can be assembled into various forms of assembly line according to the needs of the product. This machine can be applied into folders, file boxes, clothing box, shoes box, hardcover and other products. This machine has high efficiency; adapt abality, hot melt adhesive, glue, latex can be used. Variable speed, no wear, no deformation, feeding, high precision.

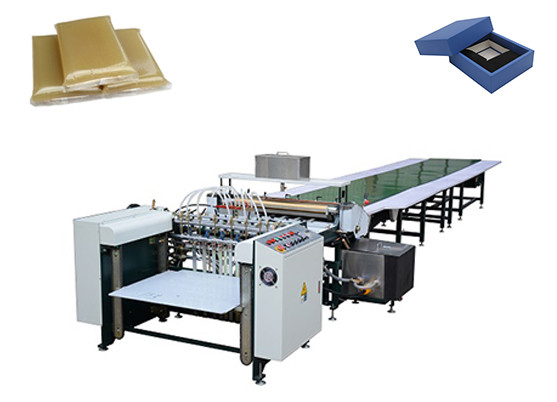

Automatic Gluing Machine For Making Rigid Paper Box 0

Technical Parameter



MODEL WM-650A
WIDTH W80-600MM
PAPER THICKNESS 80-200GSM
WORKING SPEED 7-40PCS/MIN
POWER 7.5KW
AIR PRESSURE 0.6-0.8MPa
VOLTAGE 380V/50HZ
MACHINE WEIGHT 1200KG
MACHINE SIZE 7800*1450*1300MM



Our Exhibition

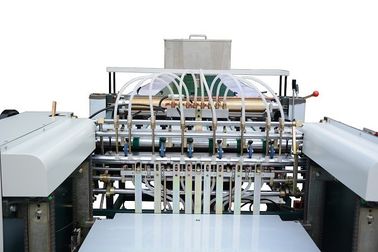

Automatic Gluing Machine For Making Rigid Paper Box 1
