Semiautomatic Paperboard Die Cutting Machine

Semiautomatic Paperboard Die Cutting Machine
Semiautomatic Paperboard Die Cutting Machine
Semiautomatic Paperboard Die Cutting Machine Semiautomatic Paperboard Die Cutting Machine Semiautomatic Paperboard Die Cutting Machine Semiautomatic Paperboard Die Cutting Machine Semiautomatic Paperboard Die Cutting Machine

Large Image :  Semiautomatic Paperboard Die Cutting Machine

Product Details:
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: CE
Model Number: WM-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 5-10 workdays
Payment Terms: L/C, T/T
Supply Ability: 1 set per 20 working days

Semiautomatic Paperboard Die Cutting Machine

Description
Speed: 4000 Sheets/h Usage: Paper Die Cutting
Power: 13.5kw Min Paper Size: 550x450mm
Machine Size: 4500x2300x2400mm Product Name: Semiautomatic Die-cutting Machine
High Light:

auto die cutting machine

,

die cutting and creasing machine

,

automatic die cutter

Semiautomatic Paperboard Die Cutting Machine







Feeding section



European technical precise feeder, fit both paperboard and corrugated paper.4 suction 4 send, can adjust angle and height of suction nozzle according to the paper distortion.

Double side lay (pull and push).

Feeding device fine tuning, non-stop adjust.

Electronic double detector.

Main, secondary feeding device no-stop switch.

Wear-resisting PU pressing wheel.

Dual purpose loader.

Feeding time fine tuning device.

Additional carriage rod 1 set, carriage plate 2 set.

(optional) pre-stacking device 1 set.

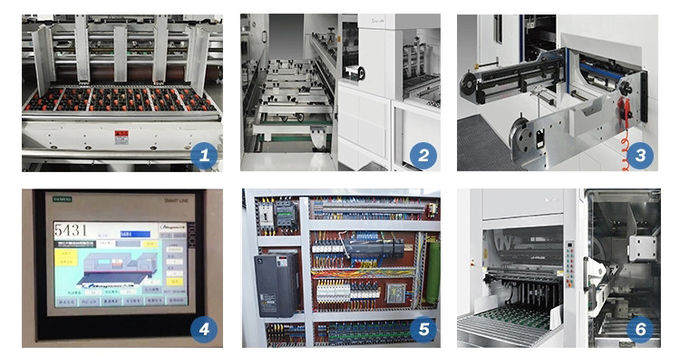

Semiautomatic Paperboard Die Cutting Machine 0

Product Description



WM-1500PS Semi Automatic Die-cutting and Creasing Machine is the core equipment for paper converting and printing industry. Unique drive gears are adopted such as high-precision indexing mechanism, pneumatic closed up, pneumatic clutch, overload protection and automatic compression relief etc, to ensure stable and high speed running of the machine. This machine is equipped with practical and reliable mechanisms such as pre-stack device, secondary delivery mechanism and manual sampling etc, which ensure the excellent performance of the machine. Electrical components and driving elements are equipped with well-known brands to achieve high die cutting precision and running reliability. Also man-machine interface is able to monitor machine running status, trouble shooting and indicting relevant help information which fully actualizes man-machine communication.



Technical Parameter



Model WM-1500PS
Max. Die-cutting Speed 4000 sheets/h
Die-cutting Precision ±0.25mm
Max. Die-cutting Pressure 250T
Max. Paper Size 1500×1100mm
Min. Paper Size 550×450mm
Max. Die-cutting Size 1490×1090mm
Cardboard 200-2000g/㎡
Corrugated paper ≤8mm (max. thickness)
Total Power 13.5KW
Weight 16T
Dimensions 4500×2300×2400mm

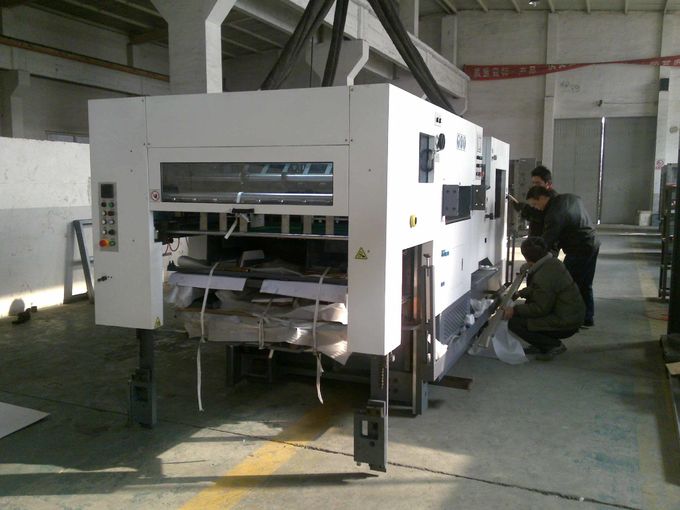

Work Shop Image

Semiautomatic Paperboard Die Cutting Machine 1



Packaging & Shipping



1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use film to wrap machine.

3. We can handle shipping for customers too.

Semiautomatic Paperboard Die Cutting Machine 2
