Product Details:
|
| Name: | Automatic Box Gluing Machine | Folder Gluer Machine | Type: | Gluing Machine |
|---|---|---|---|
| Product Name: | Gluing Machine | Automatic Grade: | Automatic |
| Speed: | 7-40pcs/min | Power: | 12 KW |
| Color: | Client's Request | Warranty: | One Year |
| Highlight: | automatic paper gluing machine,automatic box gluing machine,automatic gluing machine |
||
Double Feeder Automatic Rigid Box Gluing Machine
Double Feida Automatic Gluing Machine(.pdf
Product Features
1) Automatic sheet-fed front edge suction for various sheet sizes.
2) Adjustable rollers apply smooth glue coating on the sheet surface.
3) The circulating glue system with temperature controller assures.
4) Conveyor equipment with air-suction system to forward sheet flat and stably.
5) With ball bearing design of feed table, the sheets are conveyed.
Technical Parameter
| Model | WM-1100D |
| Width | W80-800mm |
| Paper Thickness | 80-200gsm |
| Working Speed | 20-40pcs/Min |
| Power | 12KW |
| Air Pressure | 0.6-0.8MPa |
| Voltage | 380V/50Hz |
| Weight | 1600Kg |
| Machine Size | 7800 * 1650 * 1300mm |
Other Product Recommend

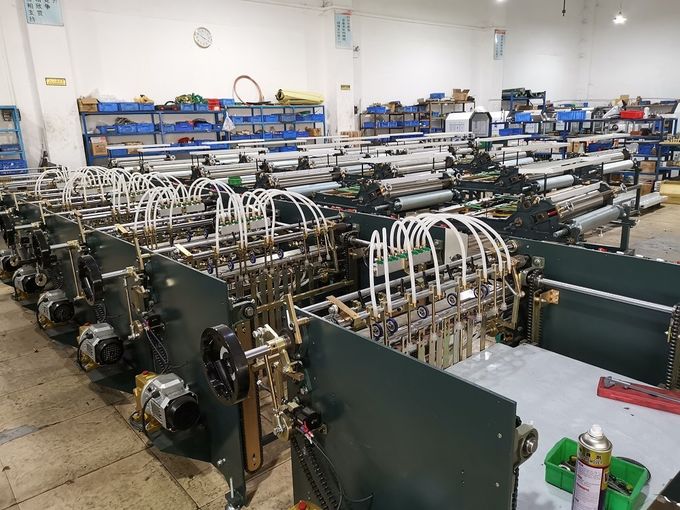

Work shop image
Packaging & Shipping
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.
2. In order to be waterproof, we usually use film to wrap machine.
3. We can handle shipping for customers too.
Our Exhibitions
We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
Our Services
1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
3. Warranty
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.
Look forward to long term cooperation with customers, we will make best service and after sales service for all of our customers.
