Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box

Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box
Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box
Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box

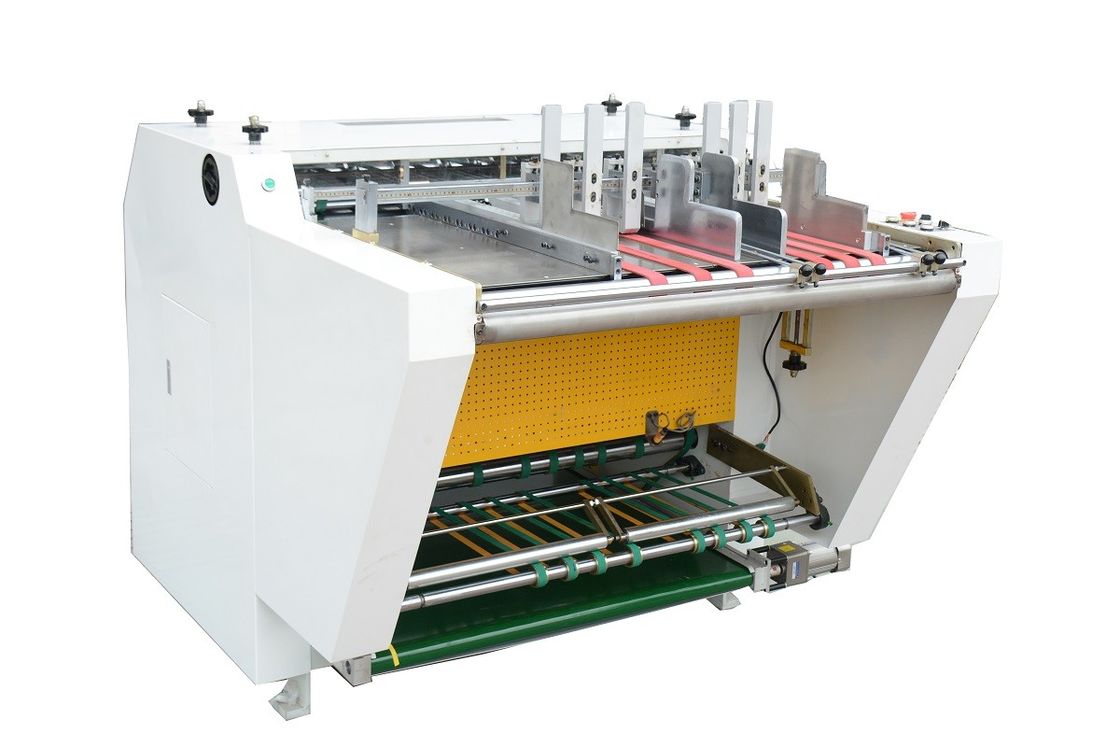

Large Image :  Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box

Product Details:
Place of Origin: CHINA
Brand Name: WELLMARK
Model Number: WM-1200A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wood Case
Delivery Time: 5-8 working days
Payment Terms: T/T, L/C at sight
Supply Ability: 20 pcs per month

Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box

Description
Type: Grooving Machine Condition: New
Automatic Grad: Automatic Application: Rigid Box Making And Hard Cover Making
Packaging Type: Wood Case Place Of Origin: Guangdong, China (Mainland)
High Light:

auto v grooving machine

,

grooving machine

,

automatic grooving machine

Automatic Grooving Machine for Cardboard / Notching Machine for Shoes Box

Automatic Grooving Machine catalog.pdf





Product Description



Grooving Machine also called Notching Machine is suitable for grooving various types and models of gift boxes and paperboard boxes to make a beautiful appearance,upgrading the products to meet an ideal effect.



Product Features



1. It adopts bottom-drawing type feeder for feeding cardboard, no-stop and fast.

2. Environmental protection: clean and without noise (waste is bar type paper)

3. Adjust the slot distance with numerical hand wheel

4. Convenient to lade and unload tools, and to blade knife without unloading

5. Grinder has been installed with angle adjustment device which makes grinding fast and accurate and without any requirements for workers.

6. Wide use: Can be used in the V type Grooving of cardboard and MDF



Product Advantages



1. Slot effect: no burrs ,no dust, V Groove surface is smooth.

2. Environmental protection and energy saving: the total power consumption is 2.0 kw.been cut V groove material can recycle in whole( the cost can equal to power cost plus cutting tool cost) and low noise.

3. Production efficiency:manual plate feeding speed 8 hours can produce about 10000 boxes.

4. Durable cutting tool:with special knife grinder (simple),grind a knife only need 2 minutes,the client may sharpen yourself.

5. Adjustable cutter angle: two pieces of independent blade and fixture,different angles without customized blades,machine can adjust itself ,different cardboard thickness without adjustment can be slotted,use very convenient.



Techinical Parameters



Model WM-1200A
Roating speed 30m /min
Power 2.0KW/220V/50HZ/1Phase
Deep of groove 1~4mm
Max. width of each group 900 mm
Max. width of board 800 mm
Feeder power 0.18 KW
Speed of feeder 0~180pcs/min(adjust)
Board specification 120~430mm
Travel of feeder 185mm
Power of conveyor belt 0.18 KW
Dimension L1780×W1680×H1480 mm



Product Application



Suitable for : Cardboard, grayboard,  MDF, ivory board, corrugated paper, kraft paper, wooden board, etc.

Box type: eg. gift box, shoe box, tea box, cake box, phone box, wooden box, wooden tableware etc.



Automatic Grooving Machine For Cardboard / Notching Machine For Shoes Box 0





Our Services


1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.

2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.

3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
