Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Application: | Machinery & Hardware |
|---|---|---|---|
| Condition: | New | Automatic Grade: | Automatic |
| Warranty: | 1 Year | Name: | Automatic Grooving Machine |
| High Light: | auto v grooving machine,grooving machine,automatic grooving machine |
||

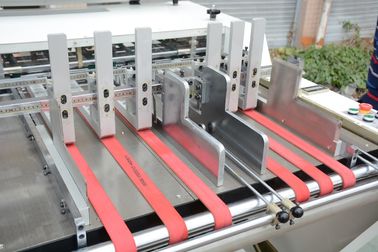

Automatic Grey Cardboard Grooving Machine
Automatic Grooving Machine catalog.pdf
Features:
1, Slotting is stable and different, No dust, High Speed, V Grooving surface is smooth.
2, Environment protection and energy saving : total power consumption is 2.0kw, been cut V groove material can recycle in whole (the cost can equal to power cost plus cutting cost) and low noise.
3, Production efficiency, 8 hours can produce 10000 pcs.
4, Durable Cutting tool with special knife grinder, it is very simple to grind a knife.
5, Adjustable cutter angle, two pieces of independent blade and fixture, different angles without customized blades, machine can adjust it self, different card board thickness without adjustment can be slotted, use very convenient.
Product Description
Automatic Grooving Machine is used for industrial cardboard, MDF board, and cardboard grooving. This machine adopts belt feed paper to grooving, 600mm diameter large drum with adjustable high-speed belt, usually with 8 slotting knives for grey cardboard, also can customize 12 slotting knives. High-speed stable dust-free.
Finished Picture
Technical Parameter
| Model | WM-1200A |
| Widest(W) | 900mm |
| Narrowest(W) | 50mm |
| Longest(L) | 650mm |
| Shortest(L) | 100mm |
| Max numbers of Groove | 8 |
| Distance of each groove | 0-900mm |
| Thickness of Paperboard(T) | 1.0-4.0mm |
| Speed | 20-35m/min |
| Voltage | 220V/50Hz |
| Power | 2kw |
| Weight | 1300kgs |
| Machine Size | L1750*W1600*H1500mm |
Packing and Shipping
