Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Type: | Grooving Machine |
|---|---|---|---|
| Condition: | New | Automatic Grade: | Automatic |
| Driven Type: | Electric | Warranty: | One Year |
| Color: | According To Customers | Advantage: | Do Crosswise Grooving And Vertical Grooving At One Time |
| Highlight: | auto v grooving machine,grooving machine,automatic grooving machine |
||
Automatic Grooving Machine / Notching Machine / Grooving Machine / Grooving Machine For Cardboard And MDF board
Automatic Grooving Machine catalog.pdf
Product Character
1. Each cutting blade could move left and right by itself.
2. Double sides position plate are adjustable. The can ensure the precision.
3. The belt press wheel could adjust the pressure of belt.
4. The counter is used for record the number of production.
5. The wheel is use for adjust grooving degree from 80-140.
6. Scrap remove equipment.
7. Special use knife grinder, usually grind one piece of cutting blade need 2 minutes only.
8. Cutting blade and holder.
9. Standby belt and 4kw adjustable speed Frequency converter.
Technical Parameter
| Model | WM-1200A |
| Widest(W) | 900mm |
| Narrowest(W) | 50mm |
| Longest(L) | 650mm |
| Shortest(L) | 100mm |
| Max numbers of Groove | 8 |
| Distance of each groove | 0-900mm |
| Thickness of Paperboard(T) | 1.0-4.0mm |
| Speed | 20-35m/min |
| Voltage | 220V/50Hz |
| Power | 2kw |
| Weight | 1300kgs |
| Machine Size | L1750*W1600*H1500mm |
Product Application

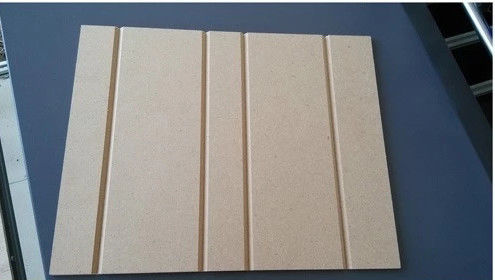

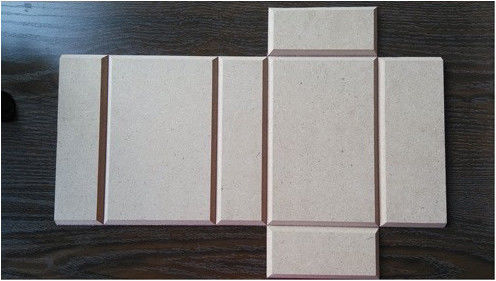

Grooving machine belong to the Gift box package production line equipment. The machine is special designed for notching V type groove, use for industry-cardboard, Ash-cardboard, MDF board and other several of cardboard, to make it suitable for box or other packaging making.
Suitable for High quality package, Gift Box, Jewelry boxes, Watch packaging, mobile phone boxes, wine boxes, Storage box, shirt and shoes boxes, make-up, toiletry boxes, biscuits and cakes boxes, note book cover, book shape boxes, hardcover, file folders, display, game boards, display stands, posters and calendars, etc.
Our Exhibition
We attended at least three oversea exhibition every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
