Product Details:
|
| Type: | Grooving Machine | Condition: | New |
|---|---|---|---|
| Automatic Grad: | Automatic | Application: | Grey Board, MDF Board |
| Packaging Type: | Wood Case | Place Of Origin: | Guangdong, China (Mainland) |
| Highlight: | auto v grooving machine,grooving machine,automatic grooving machine |
||

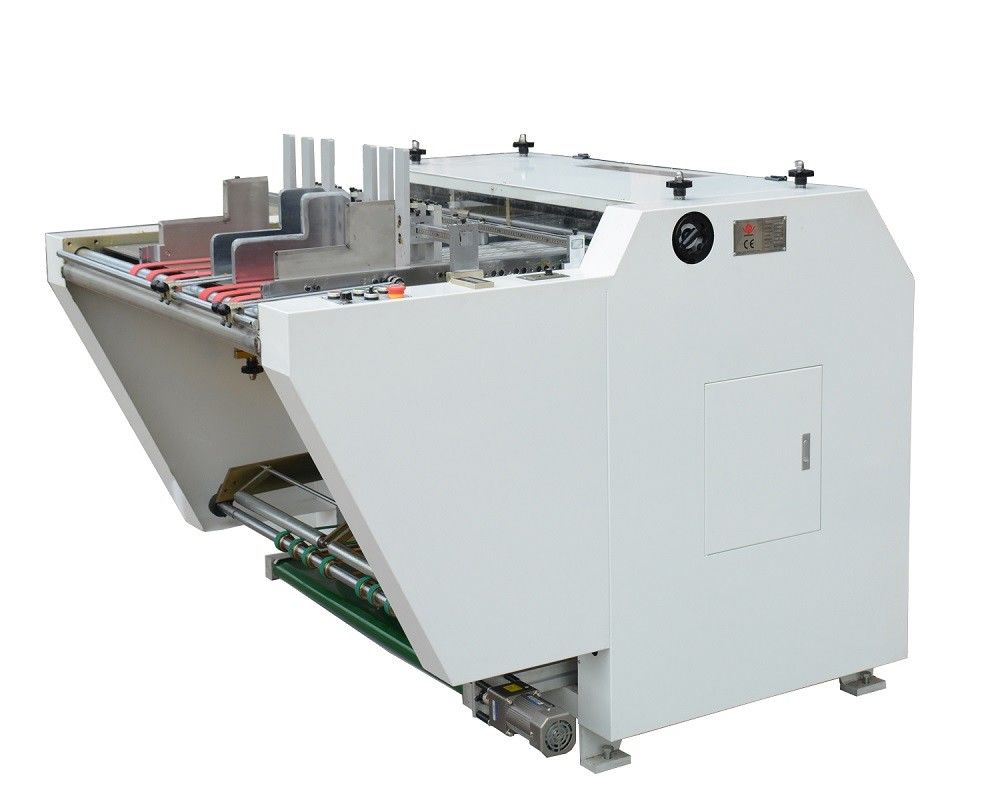

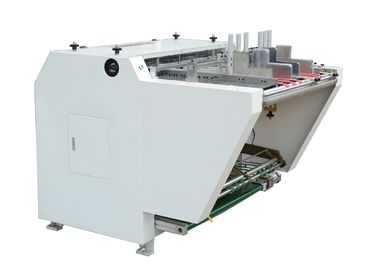

Automatic Grooving Machine For Grooving Paperboard
Automatic Grooving Machine catalog.pdf
Product Description
Technical Parameters
| Model | WM-1200A |
| Roating speed | 30m /min |
| Power | 2.0KW/220V/50HZ/1Phase |
| Deep of groove | 1~4mm |
| Max. width of each group | 900 mm |
| Max. width of board | 800 mm |
| Feeder power | 0.18 KW |
| Speed of feeder | 0~180pcs/min(adjust) |
| Board specification | 120~430mm |
| Travel of feeder | 185mm |
| Power of conveyor belt | 0.18 KW |
| Dimension | L1780×W1680×H1480 mm |
Product Features
1. It adopts PLC control, featuring in simple operation. The troubles are displayed directly on the HMI,which helps the operator easily remove them.
2. The cardboard feeder is controlled by linear guide line and servo motor,its location is correct and quick.
3. With a power-full sucker motor to keep the cardboard without any movement.
4. In the cardboard feeder, the machine can automatically stop when lack of cardboard to reduce the waste.
5. Durable knife equips with grinder which makes operation easier.
6. Wide use: Can be used in grooving the cardboard, MDF and other package materials.
Machine details

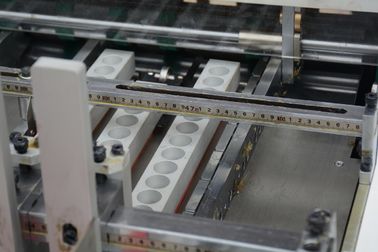

1. Each cutting blade could move left and right by itself.
2. Double sides position plate are adjustable. The can ensure the precision.
3. The belt press wheel could adjust the pressure of belt.
4. The counter is used for record the number of production.
5. The wheel is use for adjust grooving degree from 80-140.
6. Scrap remove equipment.
7. Special use knife grinder, usually grind one piece of cutting blade need 2 minutes only.
Machine Application
Grooving machine belong to the Gift box package production line equipment. The machine is special designed for notching V type groove, use for industry-cardboard, Ash-cardboard, MDF board and other several of cardboard, to make it suitable for box or other packaging making.
Suitable for High quality package, Gift Box, Jewelry boxes, Watch packaging, mobile phone boxes, wine boxes, Storage box, shirt and shoes boxes, make-up, toiletry boxes, biscuits and cakes boxes, note book cover, book shape boxes, hardcover, file folders, display, game boards, display stands, posters and calendars, etc.
Our Exhibition
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
