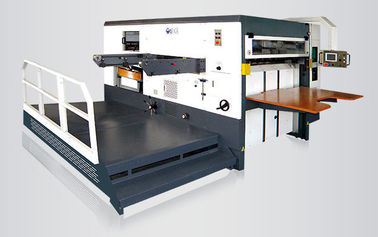

Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box

Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box
Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box

Large Image :  Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box

Product Details:
Place of Origin: China
Brand Name: WELLMARK
Model Number: WM-1300S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Seaworthy Packing
Delivery Time: 25-30 working days after receive the deposit .
Payment Terms: T/T, L/C at sight
Supply Ability: 10 set per month

Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box

Description
Type: Packaging Machine Condition: New
Application: Applying To Die-cutting, Creasing, And Cold Embossing For Cartons, Paper Boxes And Paper Labels, Etc. Packaging Type: Case
Packaging Material: Wood Automatic Grade: Automatic
Voltage: 380V Power: 13.5KW
Place Of Origin: Guangdong, China (Mainland) Model Number: WM-1300S
Dimension(L*W*H): 4000×2300×2300mm Weight: 14Ton
After-sales Service Provided: Engineers Available To Service Machinery Overseas Max.Die-cutting Speed: 5000sheets/h
High Light:

auto die cutting machine

,

die cutting and creasing machine

,

automatic die cutter

Semi Automatic Die-Cutting and Creasing Machine To Cut Paper Box





Product Description



WM-1300S  Semi Automatic Die-cutting and Creasing Machine is the core equipment for paper converting and printing industry. Unique drive gears are adopted such as high-precision indexing mechanism, pneumatic closed up, pneumatic clutch, overload protection and automatic compression relief etc, to ensure stable and high speed running of the machine. This machine is equipped with practical and reliable mechanisms such as pre-stack device, secondary delivery mechanism and manual sampling etc, which ensure the excellent performance of the machine. Electrical components and driving elements are equipped with well-known brands to acheive high die cutting precision and running reliability. Also man-machine interface is able to monitor machine running status, troublshooting and indicting relevant help information which fully actualizes man-machine communication.





Technical Prameters



Model WM-1300S
Max. Die-cutting Speed 5000 sheets/h
Die-cutting Precision ±0.25mm
Max. Die-cutting Pressure 250T
Max. Paper Size 1320×950mm
Min. Paper Size 550×450mm
Max. Die-cutting Size 1310×940mm
Paper Processed
Cardboard 200-2000g/㎡
Corrugated paper ≤8mm
Total Power 13.5KW
Weight 14T
Dimensions

4000×2300×2300mm



Machine Advantages



1. High-grade Advanced Electrical Equipment

2. Precise Machining Technique Semi Automatic Platen Paper

3. Human-Machine Interface Semi Automatic Platen Paper Semi Automatic Platen Paper

4. Delicate and Beautiful Appearance Design Semi Automatic Platen Paper Semi Automatic Platen Paper

5. Easy to operate and high safety S

6. Long Life of the Machine Semi Automatic Platen Paper Semi Automatic Platen Paper

7. Broader Applicable Scope

8. High Speed and less malfunction

9. Higher Income on Investment





Machine Characters

Feeding Section:
Apply to various size and thickness.
Apply to corrugated board less than 9mm.
Provide gripper feeding way.

Die-cutting Section:
Use imported components with high quality; Ensure more accurate control.
Have high standardization and generalization; Apply to mass production.
Cut down the cost.

Main -machine Interface:
special equipment designed and developed applicable to the die-cutting and creasing of advanced colorful boxes and cartons with
high production efficiency, multi-function
high safety and easy operation to be combined.

Die-cutting Section:
Use imported components with high quality. Ensure more accurate control. Have high standardization and generalization. Apply to mass production. Cut down the cost.

Delivery Section:
Adopt non-stop automatic delivery system.
Increase the work efficiency. Adopt safe photoelectric detection device. Ensure smooth and steady delivery.

Main Chain Drive:
Adopt high accuracy over loading chain. Have high tensile strength and abrasion-resistance

Electrical control Part:
Adopt PLC control system; Equipped with safety protection device;
Have sound & light alarm and automatic shutdown; when accident occurs.
Ensure the safety of man and machine.

Main Driving System:
Adopt warm wheel and worm gear; Adopt shell bearing connection.
Ensure smooth and steady operation; Ensure high pressure of die-cutting.

Die-cutting & Creasing Part:
Adopt overload protection mechanism. Separate the driving and driven parts automatically when overload accident happens. The unique die-cutting frame can prevent the die-cutting board from dropping and separating




Our Services

1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.

2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.

3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.





Finished Product Display

Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box 0

Packaging & Shipping



1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use film to wrap machine.

3. We can handle shipping for customers too.

Semi Automatic Die-Cutting And Creasing Machine To Cut Paper Box 1
