Fully Automatic Hard Case Making Machine For High - End Book Case

Basic Information
Place of Origin: China
Brand Name: Wellmark
Certification: ISO
Model Number: WM-HC800
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 25-30 working days after receive the deposit .
Payment Terms: T/T
Supply Ability: 5 set per month
Detail Information
Speed: ≤35pcs/min Air Pressure: 6-8bar
Warranty: 1 Year Type: Boxing Machine
Voltage: 380V/ 18kw Machine Overall Dimension: L6.5m×W4.3m×H2.2m
High Light:

automatic paper box making machine


food box making machine

Product Description

Fully Automatic Hard Case Making Machine For High - End Book Case



Product Decription


WM-HC800 Fully Automatic Hard Case Making Machine is the best equipment to produce high-grade products cover the hard case. Reasonable design, stable performance, equivalent to the international leading technology level. Adopt PLC programmable controller,HD Camera positioning system,Yamaha mechanical arm to positioning , touch human-machine interface. Realize the automatic paper, automatic gluing, automatic positioning, automatic folding the four side of the hard case of one-time finish. The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class hard book case.



 Features and function configuration


1. Suitable for all kinds of quare hard book case to automatic production

2. Automatic clamp grey board leading device

3. Computer control with error auto stop and display

4. Automatically feed paper and greyboard

5. 24-hours control for glue pre-heating

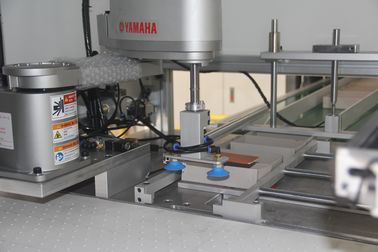

6. Spotter by 2pcs of 5 megapixel HD Camera tracing system and Yamaha mechanical arm to positioning (spotting accuracy ≤0.1mm

7. Folder can automatically and continually foldling four side and pressing.

8. Automatic control system for hot glue viscosity(optional).

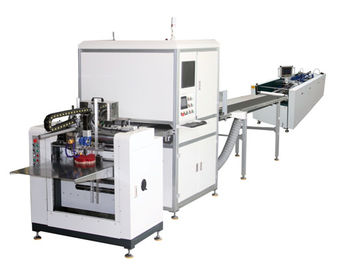

Fully Automatic Hard Case Making Machine For High - End Book Case 0





Paper Wrap Size


Widest(W) 630mm
Narrowest(W) 100mm
Longest(L) 820mm
Shortest(L) 120mm



Hard Book Case Size

L=Length W=Width


Longest(L) 800mm
Shortest(L) 180mm
Widest(W) 450mm
Narrowest(W) 120mm
Thickness of Paperboard(g/m2) Thinnest(T) 1.0mm -4.0mm
Thickness of Paper(g/m2,) Range 80g/m2-200g/m2
Speed ≤35pcs/min
Air pressure 6-8bar
Voltage 380V/50HZ
Moter power 18kw
Heater power 6kw
Net Weight 5800kgs
Machine Overall Dimension L6.5m×W4.3m×H2.2m
