Full Automatic Hard Case Making Machine

Basic Information
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: CE
Model Number: WM-HC800
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 1 set per 15 working days
Detail Information
After-sales Service Provided: Field Maintenance And Repair Service Automatic Grade: Automatic
Color: Customized Color Driven Type: Electric&pneumatic
Condition: New Warranty: 1 Year
High Light:

automatic paper box making machine


food box making machine

Product Description

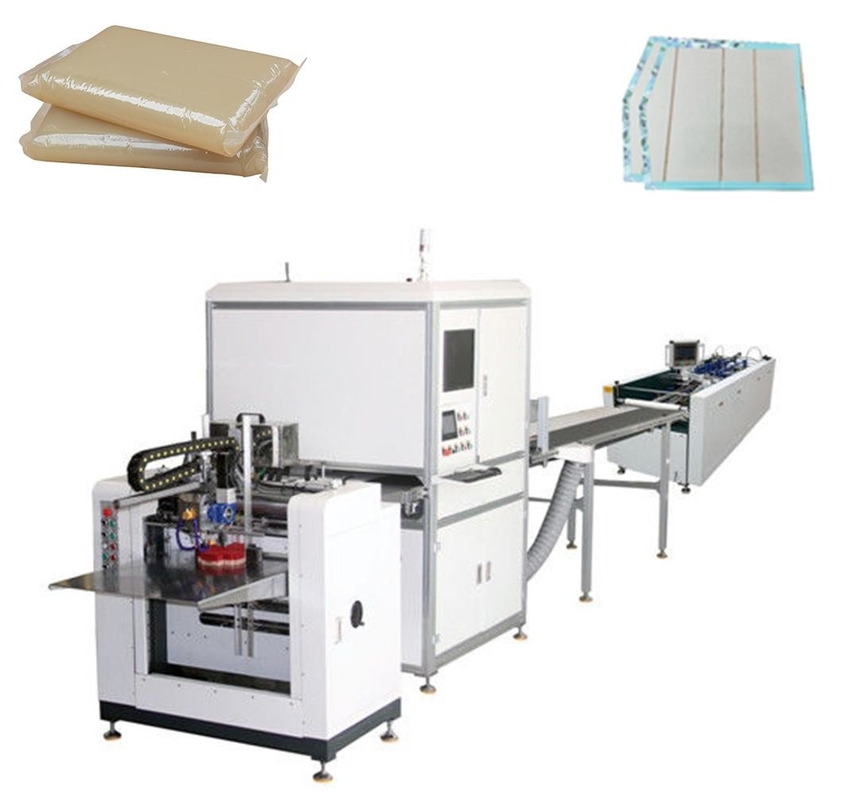

Full Automatic Hard Case Making Machine



Features and function configuration


1. Suitable for all kinds of quare hard book case to automatic production

2. Automatic clamp grey board leading device

3. Computer control with error auto stop and display

4. Automatically feed paper and greyboard

5. 24-hours control for glue pre-heating

6. Spotter by 2pcs of 5 megapixel HD Camera tracing system and Yamaha mechanical arm to positioning (spotting accuracy ≤0.1mm

7. Folder can automatically and continually foldling four side and pressing.

8. Automatic control system for hot glue viscosity(optional).


Product Flew


Fully Automatic Hard Case Making Machine For High - End Electronic Boxes


Technical Parameter


Model WM-HC800
Widest(W) 630mm
Narrowest(W) 95mm
Longest(L) 820mm
Shortest(L) 120mm
Longest(L) 800mm
Shortest(L) 180mm
Widest(W) 450mm
Narrowest(W) 120mm
Highest(H) 120mm
Shortest(H) 15mm
Thickness of Paperboard(T) 1.0mm-4.0mm
Thickness of Paper(g/㎡) 80g/㎡-200g/㎡
Speed ≤35pcs/min
Air pressure 0.6-0.8MPa
Voltage 380V/50Hz
Power 6Kw
Weight 5800Kg
Machine Size L6500*W4300*H2.200mm


Work Shop Image


Full Automatic Hard Case Making Machine 1


Guarantee of quality and service:


The Seller guarantees that the Equipment is in compliance with the Technical Specifications to the present Contract or with openly published technical specifications of the manufacturer if not stipulated in the Contract. The guarantee period shall be 1 year after the B/L date.

Seller shall provide the replaced parts and after sales service to the buyer under the whole life of the machine.


If the parts are broken under the right operation during the guarantee period, the parts including shipping costs and service will be free. But the import tax will be borne by the buyer.Under other circumstances the buyer has to bear all the parts and service related charges.
