Automatic Notching Machine / Automatic Rigid Box Grooving Machine

Automatic Notching Machine / Automatic Rigid Box Grooving Machine
Automatic Notching Machine / Automatic Rigid Box Grooving Machine
Automatic Notching Machine / Automatic Rigid Box Grooving Machine Automatic Notching Machine / Automatic Rigid Box Grooving Machine Automatic Notching Machine / Automatic Rigid Box Grooving Machine Automatic Notching Machine / Automatic Rigid Box Grooving Machine Automatic Notching Machine / Automatic Rigid Box Grooving Machine

Large Image :  Automatic Notching Machine / Automatic Rigid Box Grooving Machine

Product Details:
Place of Origin: CHINA
Brand Name: WELLMARK
Model Number: WM-1200A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wood Case
Delivery Time: 5-8 working days
Payment Terms: T/T, L/C at sight
Supply Ability: 20 pcs per month

Automatic Notching Machine / Automatic Rigid Box Grooving Machine

Description
Type: Notching Machine Condition: New
Automatic Grad: Automatic Application: Bookcase
Packaging Type: Wood Case Place Of Origin: Guangdong, China (Mainland)
High Light:

auto v grooving machine

,

grooving machine

,

automatic grooving machine

Automatic Notching Machine / Automatic Rigid Box Grooving Machine

Automatic Grooving Machine catalog.pdf





Product Description

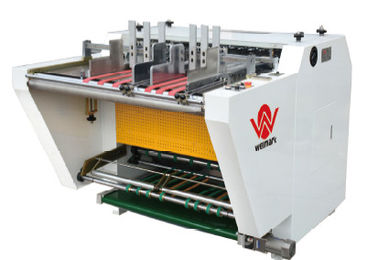

Automatic grooving machine is for notching various types and models of gift boxes and paperboard boxes to make a beautiful appearance, upgrading the products to meet an ideal effect.

All the deluxe boxes could not stand the outside grooves on the finished box bottom edge, thus, the inner groove could perfectly avoid this cosmetic issue.





Technical Parameters



Model WM-1200A
Roating speed 30m /min
Power 2.0KW/220V/50HZ/1Phase
Deep of groove 1~4mm
Max. width of each group 900 mm
Max. width of board 800 mm
Feeder power 0.18 KW
Speed of feeder 0~180pcs/min(adjust)
Board specification 120~430mm
Travel of feeder 185mm
Power of conveyor belt 0.18 KW
Dimension L1780×W1680×H1480 mm





Product Character



1. Each cutting blade could move left and right by itself.

2. Double sides position plate are adjustable. The can ensure the precision.

3. The belt press wheel could adjust the pressure of belt.

4. The counter is used for record the number of production.

5. The wheel is use for adjust grooving degree from 80-140.

6. Scrap remove equipment.

7. Special use knife grinder, usually grind one piece of cutting blade need 2 minutes only.

8. Cutting blade and holder.

9. Standby belt and 4kw adjustable speed Frequency converter.





Product Application

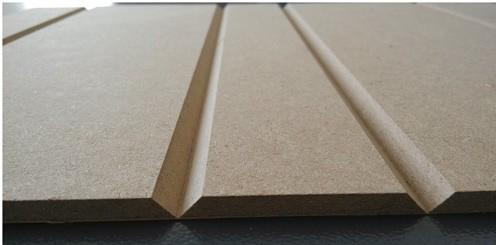

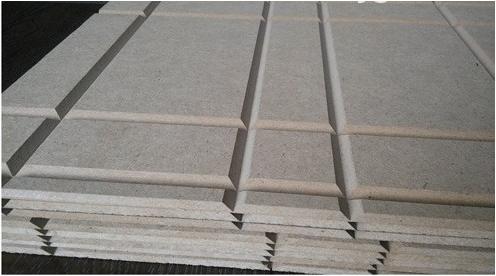

Grooving machine belong to the Gift box package production line equipment. The machine is special designed for notching V type groove, use for industry-cardboard, Ash-cardboard, MDF board and other several of cardboard, to make it suitable for box or other packaging making.

Suitable for High quality package, Gift Box, Jewelry boxes, Watch packaging, mobile phone boxes, wine boxes, Storage box, shirt and shoes boxes, make-up, toiletry boxes, biscuits and cakes boxes, note book cover, book shape boxes, hardcover, file folders, display, game boards, display stands, posters and calendars, etc.

Automatic Notching Machine / Automatic Rigid Box Grooving Machine 0Automatic Notching Machine / Automatic Rigid Box Grooving Machine 1







Packing and Shipping



Automatic Notching Machine / Automatic Rigid Box Grooving Machine 2



Our Services

1. Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
View our Factory.

2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.

3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
